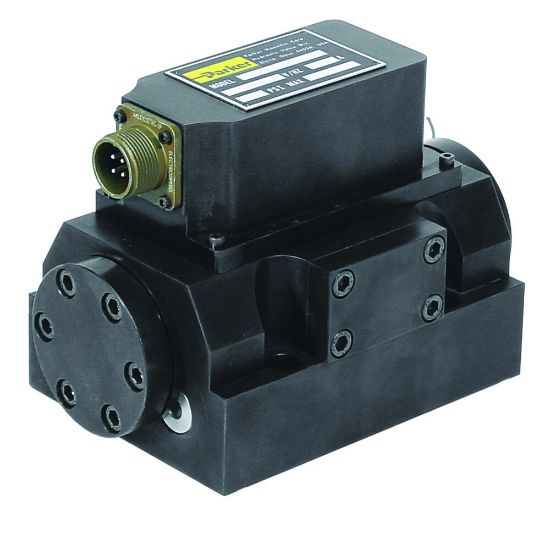

SE60SAALAVA60 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series

Parker’s SE60 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU SE60SAALAVA60

$40,279.68/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate (gpm)	60
Size	2.00in; 50.8mm	Maximum Operating Pressure	3000 PSI
Resistance (Ohms)	1200 Ohms; 20 mA (Parallel); 10 mA (Series)	Seal Material	Fluorcarbon
Minimum Operating Temperature	-4 °F	Signal Input	Standard
Actuation Type	Hydraulic Pressure	Weight	7.5 lb
Maximum Operating Pressure	210 bar	Body Material	Aluminum
Additional Options	Consult catalog for additional Features	Resistance	1200 Ohms; 20 mA (Parallel); 10 mA (Series) ohm-cm
Pilot Port Type	Internal	Division	Hydraulic Valve Systems Division
Connection Type	Port C1, (+) signal to A, C	Maximum Flow Rate	230 L/min
Maximum Operating Temperature	+140 °F	Valve Type	Servovalve

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE60 Series (PDF)
