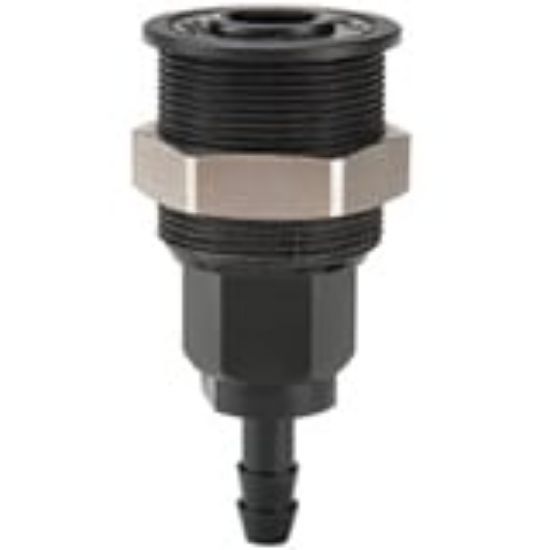

S2-APV-04-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2-APV-04-HB

$25.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Panel mount hose barb
Connection Thread Size (inch)	na	Flow Rate	1.5
Connection Tube Inside Diameter	1/4	Coupling Half	Female Coupler
Body Size (inch)	1/8	Seal Material	Nitrile
Product Type	Push-to-Connect	Minimum Operating Temperature	0 °F
Hex Size	0.67 inch	Application	Low pressure fluids and gases
Body Material	Acetal	Spring Material	Stainless steel
Maximum Operating Pressure	145 psi	Maximum Operating Temperature	180 °F
Valve Type	Poppet	Division	Quick Coupling Division
