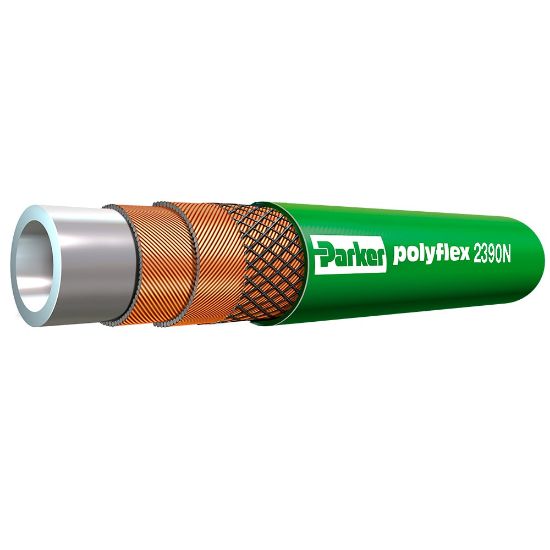

2390N-06V13 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	100 in stock

SKU 2390N-06V13

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-6
Cover Color	Green	Maximum Operating Pressure	6,000 psi
Outside Diameter	18.1 mm	Maximum Operating Pressure	44.5 MPa
Inside Diameter	9.5 mm	Weight	0.28 lb/ft
Minimum Operating Temperature	-40 °C	Cover Material	Polyurethane
Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire	Minimum Bend Radius	120 mm
Specifications Met	ISO 13628-5	Application	Oil & Gas
Design Factor	4:1	Media	Petroleum Hydraulic Fluids
Hose Inner Tube Material	Methanol Washed	Division	Parflex Division
Compatible Fitting	9X Series	Size	-6
Maximum Operating Temperature	100 °C
