929BJ-16 - Static Dissipative Hose - 929BJ

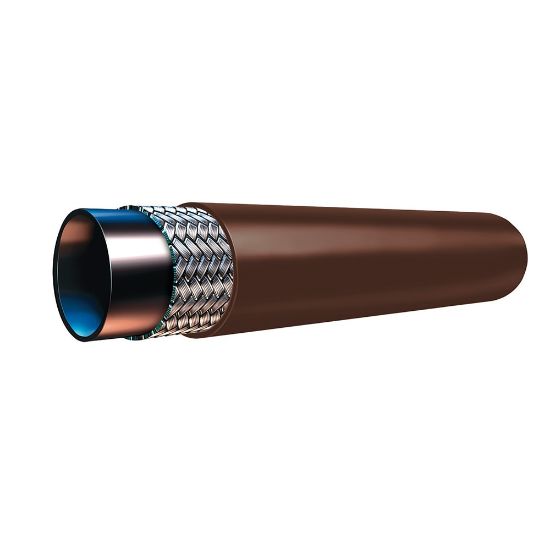

Parker's 929BJ hose features a static-dissipative PTFE core tube and a brown silicone, steam cleanable jacket to provide a smooth cover to protect the stainless steel wire reinforcement against wear, fraying and contaminants.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 929BJ-16

$106.54/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	7/8
Inside Diameter	22 mm	Outside Diameter	34.5 mm
Weight	1.16 kg/m	Vacuum Pressure Rating	12 mm-Hg
Maximum Operating Pressure	8.6 MPa	Application	Compressed Air/Gases
Size	-16	Division	Parflex Division
Product Type	PTFE Hose	Media	Water
Design Factor	4:1	Maximum Operating Temperature	450 °F
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Compatible Fitting	91N Series
Hose Reinforcement Material	Braid of 304 Stainless Steel	Minimum Bend Radius	188 mm
Specifications Met	SAE J517 and 100R1, Type 4B	Minimum Operating Temperature	-54 °C
Product Style	Static Dissipative	Cover Material	Silicone
