Static Dissipative Hose - 929BJ
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

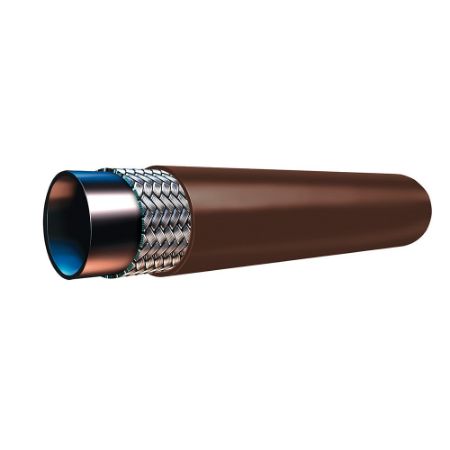

Parker's 929BJ Smoothbore Heavy Wall PTFE Hose features a specially designed brown silicone jacket to provide a clean, smooth cover to protect the stainless steel wire reinforcement against wear, fraying and contaminants. The hose is constructed of a static-dissipative PTFE core tube, reinforced with a 304 stainless steel braid, and protected with an extruded silicone cover for added durability.
929BJ assemblies are used in numerous applications including, but not limited to, chemical transfer lines, high temperature general hydraulics, and coolant lines.
Markets:
• Fluid Handling
• Compressed Gas
• Transportation
• Military
Features/Benefits:
• Silicone cover protects the stainless steel wire reinforcement against wear and fraying
• Silicone cover provides clean, smooth cover and prevents contaminants from accumulating in braid
• Tight bend radius
• Improved kink resistance over .030” wall PTFE hose
• Enhanced resistance to gas permeation due to increased PTFE wall thickness
• Steam cleanable
Applications:
• Vacuum lines for high temperature autoclaves
• General hydraulics
• Compressed air/gases
Technical Specifications:
• Cover must be skived prior to fitting attachment
• Hose I.D. is nominal
Read More...929BJ assemblies are used in numerous applications including, but not limited to, chemical transfer lines, high temperature general hydraulics, and coolant lines.
Markets:
• Fluid Handling
• Compressed Gas
• Transportation
• Military
Features/Benefits:
• Silicone cover protects the stainless steel wire reinforcement against wear and fraying
• Silicone cover provides clean, smooth cover and prevents contaminants from accumulating in braid
• Tight bend radius
• Improved kink resistance over .030” wall PTFE hose
• Enhanced resistance to gas permeation due to increased PTFE wall thickness
• Steam cleanable
Applications:
• Vacuum lines for high temperature autoclaves
• General hydraulics
• Compressed air/gases
Technical Specifications:
• Cover must be skived prior to fitting attachment
• Hose I.D. is nominal
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Inner Tube Material | Product Type | Media | Design Factor | Application | Specifications Met | Cover Material | Product Style | Minimum Operating Temperature | Minimum Bend Radius | Hose Reinforcement Material | Vacuum Pressure Rating | Weight | Outside Diameter | Inside Diameter | Maximum Operating Pressure | Compatible Fitting | Maximum Operating Temperature | Division | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 929BJ-12 | Backordered | Backordered | $71.12/foot | FT | 5/8 | Polytetrafluoroethylene (PTFE) | PTFE Hose | Air | 4:1 | Adhesive Dispensing | SAE J517 and 100R1, Type 4B | Silicone | Static Dissipative | -65 | 6-1/2 | Braid of 304 Stainless Steel | 304.8 | 0.43 | 1.040 | 5/8 | 1200 | 91N Series | 450 | Parflex Division | -12 | |
| 929BJ-16 | Backordered | Backordered | $106.54/foot | FT | 7/8 | Polytetrafluoroethylene (PTFE) | PTFE Hose | Water | 4:1 | Compressed Air/Gases | SAE J517 and 100R1, Type 4B | Silicone | Static Dissipative | -54 °C | 188 mm | Braid of 304 Stainless Steel | 12 mm-Hg | 1.16 kg/m | 34.5 mm | 22 mm | 8.6 MPa | 91N Series | 450 °F | Parflex Division | -16 | |
| 929BJ-4 | Backordered | 692 in stock | $39.05/foot | FT | 3/16 | Polytetrafluoroethylene (PTFE) | PTFE Hose | Air | 4:1 | Chemical Transfer | SAE J517 and 100R1, Type 4B | Silicone | Static Dissipative | -65 °F | 51 mm | Braid of 304 Stainless Steel | 28 mm-Hg | 0.17 lb/ft | 0.580 inch | 3/16 inch | 3000 psi | 91N Series | 232 °C | Parflex Division | -4 | |
| 929BJ-6 | Backordered | Backordered | $44.03/foot | FT | 5/16 | Polytetrafluoroethylene (PTFE) | PTFE Hose | Water | 4:1 | Adhesive Dispensing | SAE J517 and 100R1, Type 4B | Silicone | Static Dissipative | -65 °F | 4 inch | Braid of 304 Stainless Steel | 711.2 Inch-Hg | 0.34 kg/m | 17.8 mm | 5/16 inch | 172 bar | 91N Series | 232 °C | Parflex Division | -6 | |
| 929BJ-8 | 1 Limited Stock | 7 in stock | $49.13/foot | FT | 13/32 | Polytetrafluoroethylene (PTFE) | PTFE Hose | Petroleum Hydraulic Fluids | 4:1 | High Temperature Applications | SAE J517 and 100R1, Type 4B | Silicone | Static Dissipative | -54 °C | 4-5/8 inch | Braid of 304 Stainless Steel | 28 mm-Hg | 0.43 kg/m | 0.810 inch | 10 mm | 2000 psi | 91N Series | 232 °C | Parflex Division | -8 |
