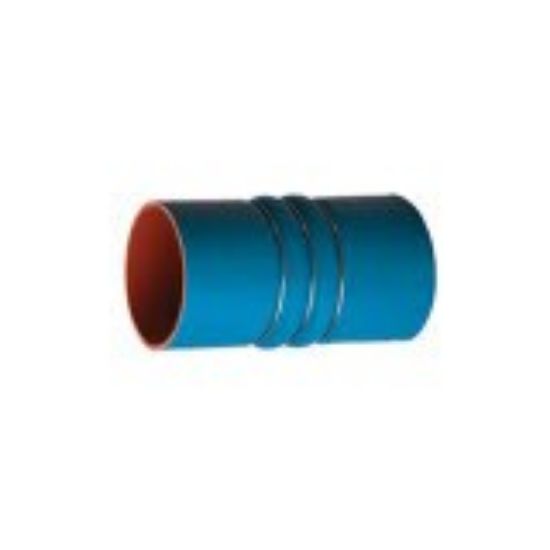

6824-30006000 - Silicone High Temperature Charge Air Cooler Hose, Series 6824

Silicone High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the intake air from the charging system of heavy duty engine applications to 350°F and 25 psi, Series 6824

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU 6824-30006000

$54.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Standard Package Quantity	6 x 6-in lg
Hose I.D. (inch)	3	Minimum Burst Pressure (psi)	80
Division	Hose Products Division	Maximum Operating Temperature	500 °F
Hose Inner Tube Material	Silicone	Media	Air (Hot Air)
Cover Material	Silicone	Minimum Operating Temperature	-54 °C
Minimum Bend Radius	n/a	Specifications Met	SAE J20R5
Minimum Burst Pressure	80 psi	Application	Silicone Coolant
Hose Reinforcement Material	4 Plies of High Temperature Textile (with external Stainless Steel Retaining Rings)	Outside Diameter	3.320 inch
Weight	0.52 lb/ft	Maximum Operating Pressure	5.5 bar
Inside Diameter	76.2 mm	Cover Color	Blue

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
