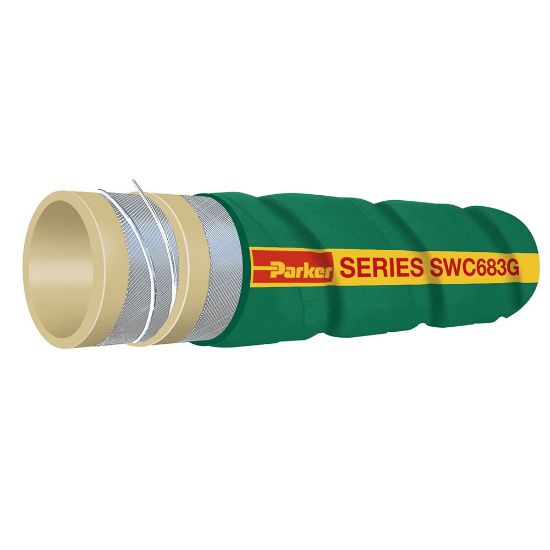

SWC683G-3000 - TITANFLEX® MODIFIED XLPE CORRUGATED CHEMICAL SUCTION HOSE

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	52 in stock

SKU SWC683G-3000

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Green
Hose I.D. (inch)	3	Maximum Operating Temperature	250 °F
Hose Inner Tube Material	Tan (MXLPE)	Compatible Fitting	n/a
Size	-48	Media	Acids
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	6 inch
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Minimum Operating Temperature	-40 °C
Cover Structure	Corrugated	Application	Processing
Outside Diameter	3.630 inch	Weight	2.88 kg/m
Nominal Hose Inside Diameter	80 mm	Maximum Operating Pressure	13.8 bar
Inside Diameter	3 inch	Vacuum Pressure Rating	737 mm-Hg
Division	Hose Products Division
