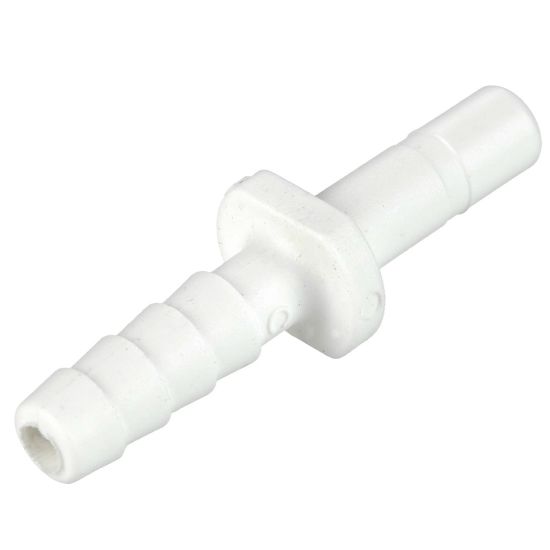

Parker PP4TCB4 Connector Polypropylene 1/4" Tube Stem Push-to-Connect All Plastic FDA Compliant Fitting, Parker

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	4 in stock

SKU PP4TCB4

$2.26/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Type	Barb	Connection 2 Size	1/4"
Connection 1 Type	Tube Stem	Product Style	Connector
Body Material	Polypropylene	Color	White
Configuration	Tube to Barb	Specifications Met	FDA
Maximum Operating Pressure	10 bar	Dimensional Weight	0.1335 lb
Minimum Operating Temperature	-18 °C	Division	Fluid System Connectors Division
Maximum Operating Temperature	107.2 °C	Seal Material	EPDM (O-Ring)
Body Material	Polypropylene
