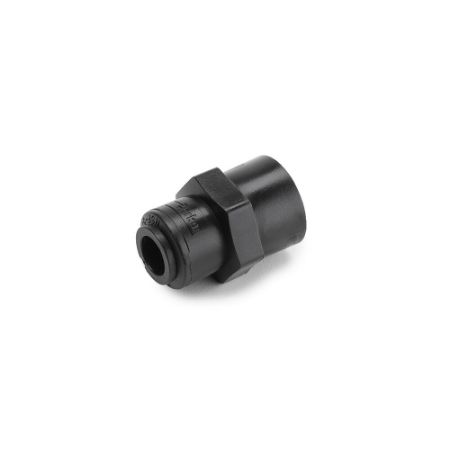

Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.
Use with Parker Parflex Division tubing:
• Polyethylene
• Polypropylene
• Nylon
• Vinyl
• Fluoropolymer
• Polyurethane
• Kynar
Markets:
• Food
• Potable water
• Chemical
• Filtration
• Beverage
Features and Benefits:
• Gripping teeth available in stainless steel or with and engineered thermoplastic bite edge
• Acetal, Polypropylene and Kynar body material
• Engineered O-ring increases seal compression on tube
• EPDM seal in Acetal and Polypropylene, fluorocarbon in Kynar material
• FDA Compliant
• All fittings are NSF-51 listed
• Gray Acetal fittings are NSF-61
• 1/4" - 1/2" tube size
• NPT threads
• Push button release
• Use with Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane, Kynar
Applications:
• Air
• Water
• Reverse Osmosis
• Beer & wine
• Dispensing systems
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Color | Connection 1 Size | Connection 2 Size | Configuration | Connection 1 Type | Connection 2 Type | Body Material | Shape | Seal Material | Maximum Operating Temperature | Division | Maximum Operating Pressure | Body Material | Minimum Operating Temperature | Specifications Met | Product Style | Connection 3 Size | Connection 3 Type | Connection 4 Size | Connection 4 Type | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A4BU4-MG | 66 in stock | 74 in stock | $3.94/each | EA | Gray | 1/4" | 1/4" | Tube to Tube | Push-to-Connect | Push-to-Connect | Acetal | Union - Bulkhead | EPDM (O-Ring) | 180 °F | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI/CAN 61 | |||||||
| A4CAP-MG | 92 in stock | 8 in stock | $3.12/each | EA | Gray | 1/4" | Push-to-Connect | Acetal | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -29 °C | NSF/ANSI/CAN 61 | Cap | ||||||||||
| A4CU4-MG | 15 in stock | 19 in stock | $8.21/each | EA | Gray | 1/4" | 1/4" | Tube to Tube | Push-to-Connect | Push-to-Connect | Acetal | Cross | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -29 °C | NSF/ANSI 51 | 1/4" | Push-to-Connect | 1/4" | Push-to-Connect | |||
| A4EU4-MG | 28 in stock | 47 in stock | $2.30/each | EA | Gray | 1/4" | 1/4" | Tube to Tube | Push-to-Connect | Push-to-Connect | Acetal | Elbow 90° | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -20 °F | FDA | 0.2914 lb | ||||||
| A4FA7-MG | Backordered | 3 in stock | $3.43/each | EA | Gray | 1/4" | 7/16"-24 | Tube to Female Pipe | Push-to-Connect | UNS-2B Straight | Acetal | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI 51 | Faucet Adapter | 0.2914 lb | ||||||
| A4FC2-MG | Backordered | 30 in stock | $3.92/each | EA | Gray | 1/4" | 1/8" | Tube to Female Pipe | Push-to-Connect | Female NPT | Acetal | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI/CAN 61 | Connector | |||||||
| A4FC4-MG | 21 in stock | 27 in stock | $3.14/each | EA | Gray | 1/4" | 1/4" | Tube to Female Pipe | Push-to-Connect | Female NPT | Acetal | EPDM (O-Ring) | 180 | Fluid System Connectors Division | 300 | Acetal | -20 | FDA | Connector | 0.2914 | ||||||
| A4FE4-MG | Backordered | Backordered | $3.64/each | EA | Gray | 1/4" | 1/4" | Tube to Female Pipe | Push-to-Connect | Female NPT | Acetal | Elbow 90° | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI 51 | 0.2914 lb | ||||||
| A4FF4-MG | Backordered | 10 in stock | $4.16/each | EA | Gray | 1/4" | 7/16"-20 | Tube to Female Flare | Push-to-Connect | UNS-2B Straight | Acetal | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI 51 | Connector | |||||||
| A4MC2-MG | 2 Limited Stock | 181 in stock | $1.37/each | EA | Gray | 1/4" | 1/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | EPDM (O-Ring) | 180 °F | Fluid System Connectors Division | 20 bar | Acetal | -20 °F | FDA | Connector | 0.1335 lb | ||||||
| A4MC4-MG | 47 in stock | 576 in stock | $1.48/each | EA | Gray | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | EPDM (O-Ring) | 180 °F | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI/CAN 61 | Connector | 0.1781 lb | ||||||
| A4MC6-MG | Backordered | 75 in stock | $3.40/each | EA | Gray | 1/4" | 3/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | NSF/ANSI 51 | Connector | 0.1781 lb | ||||||
| A4ME2-MG | 10 in stock | 5 in stock | $2.03/each | EA | Gray | 1/4" | 1/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -29 °C | NSF/ANSI/CAN 61 | 0.1335 lb | ||||||
| A4ME4-MG | Backordered | 325 in stock | $2.96/each | EA | Gray | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -20 °F | NSF/ANSI 51 | 0.0117 lb | ||||||
| A4ME6-MG | Backordered | 94 in stock | $3.53/each | EA | Gray | 1/4" | 3/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | FDA | |||||||
| A4MES2-MG | Backordered | 55 in stock | $4.25/each | EA | Gray | 1/4" | 1/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° - Swivel | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -20 °F | NSF/ANSI 51 | 0.1781 lb | ||||||
| A4MES4-MG | Backordered | 3 in stock | $4.25/each | EA | Gray | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° - Swivel | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -29 °C | NSF/ANSI 51 | 0.1781 lb | ||||||
| A4MES6-MG | Backordered | Backordered | $5.08/each | EA | Gray | 1/4" | 3/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Elbow 90° - Swivel | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -29 °C | FDA | |||||||
| A4MRS2-MG | Backordered | Backordered | $4.09/each | EA | Gray | 1/4" | 1/8" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Run Tee | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 20 bar | Acetal | -20 °F | NSF/ANSI 51 | 1/4" | Push-to-Connect | |||||
| A4MRS4-MG | Backordered | 1 Limited Stock | $5.64/each | EA | Gray | 1/4" | 1/4" | Tube to Pipe | Push-to-Connect | Male NPT | Acetal | Run Tee | EPDM (O-Ring) | 82.2 °C | Fluid System Connectors Division | 300 psi | Acetal | -20 °F | FDA | 1/4" | Push-to-Connect |
