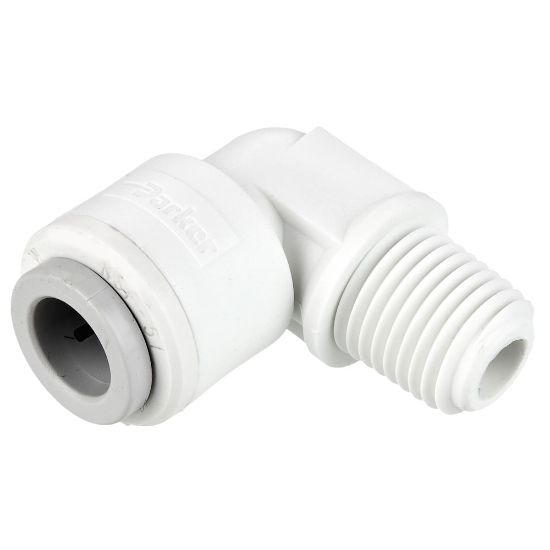

Parker PP4ME6 Elbow 90° Polypropylene 1/4" Push-to-Connect All Plastic FDA Compliant Fitting, Parker

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	15 in stock

SKU PP4ME6

$10.67/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Tube to Pipe
Shape	Elbow 90°	Connection 2 Size	3/8"
Connection 1 Type	Push-to-Connect	Connection 2 Type	Male NPT
Color	White	Body Material	Polypropylene
Connection 1 Size	1/4"	Minimum Operating Temperature	-18 °C
Maximum Operating Temperature	107.2 °C	Seal Material	EPDM (O-Ring)
Body Material	Polypropylene	Division	Fluid System Connectors Division
Specifications Met	NSF/ANSI 51	Maximum Operating Pressure	150 psi
