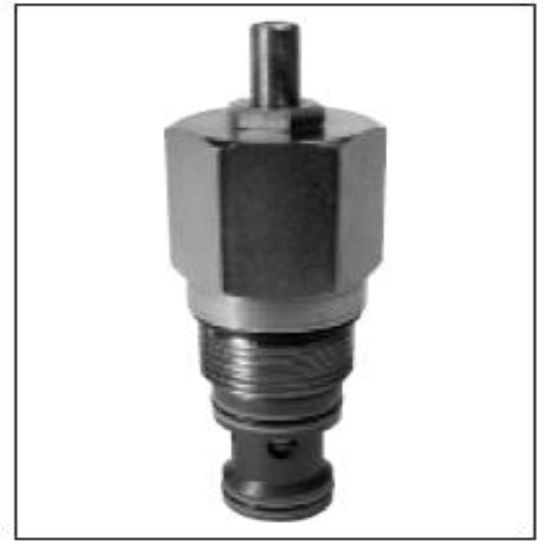

A06H3PZN - Pilot Operated Ventable Relief Valves

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A06H3PZN

$389.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Pressure Control Range	145-6000 PSI, 10-420 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	106 GAL/MIN, 400 L/MIN
Mounting Type	Screw-in Cartridge	Pressure Control Range	145 to 6000 psi
Flow Rate	400 L/min	Operating Temperature	-34 to 121 °C
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	SAE Class 4	Pressure Control Sensitivity	55 bar Per Turn
Configuration	Ventable Pressure Relief	Function	Pilot Operated
Cavity Size	C16-3S	Adjustment Mechanism	Screw
Minimum Operating Temperature	-30 °F	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Operating Temperature	121 °C	Maximum Flow Rate	106 Gal/min
Division	Hydraulic Cartridge Systems Division	Leak Rate	100 cm3/min @ 1450 Psi (100 bar)
Valve Material	Hardened Steel (all operating parts)	Maximum Pressure Setting	420 bar
Maximum Tank Pressure	420 bar	Seal Material	Nitrile
Maximum Inlet Pressure Rating	420 bar	Body Material	n/a
Installation Torque	74 lb-ft	Weight	1.28 lb
Maximum Operating Pressure	420 bar	Division	Mobile Hydraulic Systems Division Europe
Reseat Pressure	n/a	Operation Type	Automatic
Standard Setting Pressure	200 bar
