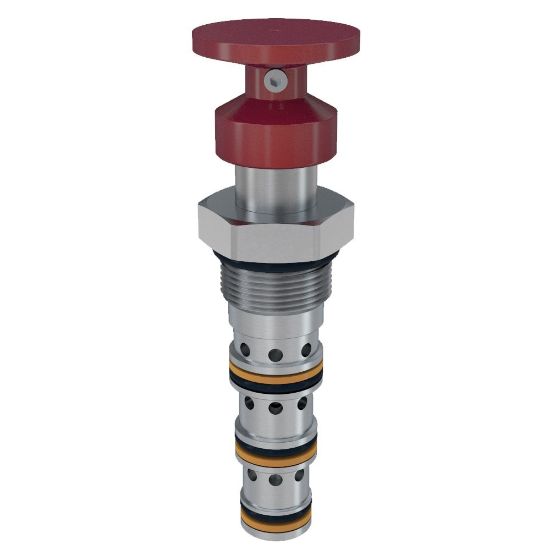

GM0240CS1V - 2 Position, 4 Way Push to Shift Manual Valve

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 105 days
Partner Available:	Backordered

SKU GM0240CS1V

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Actuation Type	Knob
Flow Rate	4 GAL/MIN, 15 L/MIN	Installation Torque	30 Nm
Division	Hydraulic Systems Division	Operation Type	Manual
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	15 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+204 °C
Leak Rate	200 @ 5000 PSI (350 BAR) cm3/min	Maximum Inlet Pressure Rating	5000 psi
Function	Spool Type	Maximum Tank Pressure	35 bar
Minimum Operating Temperature	-26 °C	Cavity Size	C10-4
Configuration	Normally Closed	Actuation Type	Knob
Flow Rate	4 gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-15 to +400 °F	Weight	0.25 lb
Maximum Operating Pressure	350 bar	Detents	Yes
Body Material	N/A	Force	11 lbf
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
