PRH101S10 - Pilot Operated Pressure Reducing Relieving Valves

Name: PRH101S10 - Pilot Operated Pressure Reducing Relieving Valves
SKU: PRH101S10
Price: 74.39 USD
Availability: InStock

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:

17 in stock

Kansas City, KS	8
Olivette, MO	6
Wichita, KS	3

Partner Available:

19 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PRH101S10

$74.39/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Mounting Type	Screw in cartridge valve	Cracking Pressure	N/A
Seal Material	D-Ring (Standard)	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	200-1000 PSI, 13.7-69 BAR	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Drain Flow Rate	0.25 Gal/min	Standard Setting Pressure	500 psi
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	+93 °C
Valve Material	All parts steel. All operating parts hardened steel	Maximum Pressure Setting	69 bar
Seal Material	D-Ring (Standard)	Leak Rate	N/A cc/min
Maximum Flow Rate	56.3 L/min	Operating Temperature	-37 to +93 °C
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Pressure Reducing/Relieving	Maximum Operating Pressure	5000 psi
Weight	0.5 lb	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	51-55 lb-ft
Operation Type	Automatic	Adjustment Mechanism	Screw
Cavity Size	C10-3	Port Thread Size	N/A
Mounting Type	Screw in cartridge valve	Minimum Operating Temperature	-35 °F
Pressure Control Range	13.7-69 bar	Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Sensitivity	19.6 per turn bar
Function	Pilot Operated	Maximum Inlet Pressure Rating	5500 psi
Maximum Tank Pressure	350 bar	Cracking Pressure	N/A psi

Customers who bought this item also bought

RAH101S50 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

$55.03/each

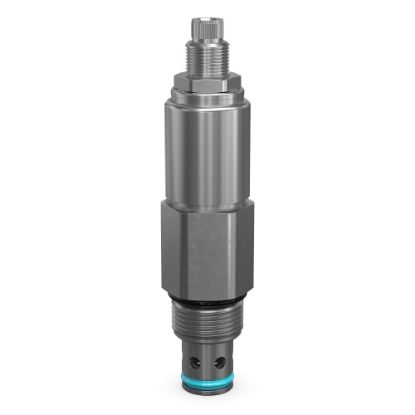

RD102S09 - Direct Acting Relief Valves
