RD102S09 - Direct Acting Relief Valves

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 16 days
Partner Available:	8 in stock

SKU RD102S09

$60.23/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Seal Material	D-Ring (Standard)	Flow Rate	10 GAL/MIN, 38 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Pressure Control Range	100-900 PSI, 7-62 BAR
Division	Hydraulic Systems Division	Operating Temperature	-35 to +200 °F
Flow Rate	10 Gal/min	Actuation Type	Pressure Sensing
Maximum Flow Rate	38 L/min	Maximum Operating Pressure	3600 psi
Maximum Operating Temperature	+200 °F	Minimum Operating Temperature	-35 °F
Body Material	N/A	Seal Material	D-Ring (Standard)
Weight	0.5 lb	Mounting Type	Screw in cartridge valve
Operation Type	Automatic	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Pressure Relief	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Direct Acting	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	5 @ 75% Crack Pressure drops/min	Cavity Size	C10-2
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	37-41 lb-ft
Maximum Inlet Pressure Rating	250 bar	Adjustment Mechanism	Screw
Maximum Pressure Setting	62 bar	Reseat Pressure	85% of pressure setting
Maximum Tank Pressure	210 bar	Pressure Control Range	6.9-62 bar
Standard Setting Pressure	31 bar	Wire Mesh Screen Included	N/A
Pressure Control Sensitivity	7.2 per turn bar

Customers who bought this item also bought

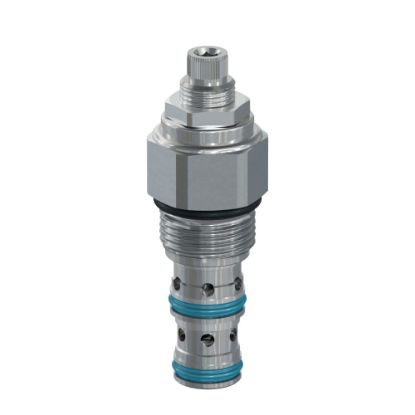

PRH101S10 - Pilot Operated Pressure Reducing Relieving Valves
