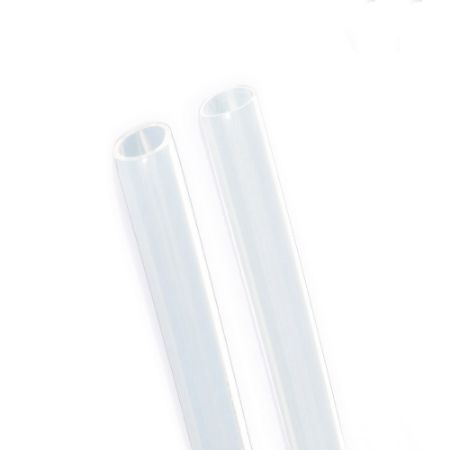

PFA Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PFA tubing is chemically inert, odorless, taste-less, non-wetting and non-leaching and is often used in fluid and material handling applications, such as chemical transfer. However, it also performs well in food & beverage or medical applications. Using bulk reels up to 1000 feet aid customers in providing installations with continuous length assemblies, free of connectors, and also reducing scrap when producing shorter length assemblies. Parker’s extrusion process starts with a PFA resin that offers a high molecular weight and high resistance to stress cracking, allowing the tubing to be used with flare or conventional fittings. Series 104 PFA is considered Parker’s standard PFA tubing and offers a low level of extractables. High purity PFA resins, designed for specifically for semiconductor applications, are also available. See Parker’s “High Purity PFA - Series 105” for more information.

Markets:
• Semiconductor
• Pharmaceutical
• Instrumentation
• Food & Beverage

Features Benefits:
• No process contamination
• Exceptional heat resistance
• Higher flow for improved production runs
• Chemically inert to nearly all industrial chemicals and solvents
• Low coefficient of friction
• Self extenguishing
• Low permeability
• Translucent
• Long continuous lengths

Certifications/Compliance:
• ASTM D3307
• 21 CFR 177.1550 compliant
• USP Class VI Compliant
• UL 94 V-0 compliant

Technical Specifications:
• Extruded from virgin PFA (Perfluoroalkoxy)
• Qualified with fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite
and Thermoplastic Fittings and Valves Catalog CAT3501E USA)
• Working and burst pressures rated at 73°F /23°C
• All dimensions are nominal
• Random length coils, quantities are not continuous
• Continuous lengths and colors available as a custom run - Contact customer service

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Order Size	Product Type	Tube Wall Thickness	Standard Pack Qty (ft)	Tube Inside Diameter	Tube Outside Diameter	Application	Media	Maximum Operating Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Specifications Met	Weight	Color	Tube Material	Compatible Fitting	Minimum Bend Radius	Tube Outside Diameter	Length per Package	Tube Inside Diameter	Minimum Burst Pressure	Product Type
104-0438031-NT-100	Backordered	Backordered	$5.05/foot	FT	7/16	Industrial Wall	0.031	100.0	0.375	0.438	Steam Plant	Water	120 psi	260 °C	-100 °F	UL 94 V-0	0.037 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Compression	83 mm	11.13 mm	100 ft	0.375 inch	33 bar
104-0438062-NT-100	Backordered	Backordered	$7.86/foot	FT	7/16	Heavy Wall	0.062	100.0	0.312	0.438	Gas Sampling	Air	250 psi	260 °C	-75 °C	FDA 21 CFR 177.1550	0.101 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Compression	2-5/8 inch	11.13 mm	100 ft	0.312 inch	69 bar
104-0500031-NT-100	Backordered	Backordered	$6.03/foot	FT	1/2	Industrial Wall	0.031	100.0	0.438	0.5	Air	Chemicals	100 psi	500 °F	-100 °F	USP Class VI	0.043 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Compress-Align®	4-3/4 inch	0.500 inch	30.5 m	0.438 inch	28 bar
104-0500062-NT-100	Backordered	21 in stock	$13.94/foot	FT	1/2	Heavy Wall	0.062	100.0	0.375	0.5	Steam Plant	Industrial Gases	14 bar	260 °C	-100 °F	FDA 21 CFR 177.1550	0.079 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Compress-Align®	2-1/4 inch	0.500 inch	100 ft	9.53 mm	840 psi
104-0500062-NT-25	Backordered	Backordered	$12.33/foot	FT	1/2	Heavy Wall	0.062	25.0	0.375	0.5	Fluid Transfer	Air	210 psi	260 °C	-75 °C	FDA 21 CFR 177.1550	0.118 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	TrueSeal™	2-1/4 inch	12.7 mm	7.6 m	9.53 mm	840 psi
104-0500062-NT-50	Backordered	Backordered	POR	FT	1/2	Heavy Wall	0.062	50.0	0.375	0.5	Laboratory	Air	210 psi	500 °F	-75 °C	UL 94 V-0	0.079 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Compression	2-1/4 inch	0.500 inch	50 ft	9.53 mm	840 psi
104-0750062-NT-100	Backordered	500 in stock	$21.62/foot	FT	3/4	Heavy Wall	0.062	100.0	0.625	0.75	Flow Monitoring	Chemicals	9 bar	260 °C	-75 °C	ASTM D3307	0.186 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Compress-Align®	6 inch	0.750 inch	100 ft	0.625 inch	36 bar
104-0750062-NT-25	Backordered	Backordered	$16.63/foot	FT	3/4	Heavy Wall	0.062	25.0	0.625	0.75	Gas Sampling	Air	130 psi	260 °C	-75 °C	UL 94 V-0	0.125 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Compression	6 inch	0.750 inch	25 ft	15.88 mm	36 bar
104-0750062-NT-50	Backordered	Backordered	POR	FT	3/4	Heavy Wall	0.062	50.0	0.625	0.75	Air	Industrial Gases	130 psi	260 °C	-75 °C	UL 94 V-0	0.186 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	TrueSeal™	6 inch	0.750 inch	50 ft	0.625 inch	36 bar
104-1000062-NT-100	Backordered	Backordered	$22.92/foot	FT	1	Heavy Wall	0.062	100.0	0.875	1.0	Air	Chemicals	90 psi	500 °F	-75 °C	FDA 21 CFR 177.1550	0.253 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Compress-Align®	203 mm	25.4 mm	100 ft	22.22 mm	360 psi
204-0400100-NT-100	Backordered	Backordered	$1.97/foot	FT	4MM	Metric	1	100.0	2	4	Flow Monitoring	Industrial Gases	290 psi	500 °F	-100 °F	UL 94 V-0	0.020 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	TrueSeal™	1/2 inch	0.157 inch	30.5 m	2 mm	80 bar	Metric
204-0400100-NT-25	Backordered	Backordered	$2.08/foot	FT	4MM	Metric	1	25.0	2	4	Gas Sampling	Chemicals	20 bar	500 °F	-100 °F	USP Class VI	0.014 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	13 mm	4 mm	25 ft	2 mm	1160 psi	Metric
204-0400100-NT-50	Backordered	Backordered	POR	FT	4MM	Metric	1	50.0	2	4	Air	Chemicals	20 bar	260 °C	-75 °C	USP Class VI	0.020 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	13 mm	4 mm	15.2 m	2 mm	80 bar	Metric
204-0600100-NT-100	Backordered	Backordered	$3.01/foot	FT	6MM	Metric	1	100.0	4	6	Air	Water	12 bar	500 °F	-75 °C	FDA 21 CFR 177.1550	0.034 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	1-1/8 inch	6 mm	100 ft	4 mm	29 bar	Metric
204-0600100-NT-25	Backordered	Backordered	$3.47/foot	FT	6MM	Metric	1	25.0	4	6	Flow Monitoring	Air	180 psi	500 °F	-75 °C	USP Class VI	0.034 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	TrueSeal™	1-1/8 inch	0.236 inch	7.6 m	4 mm	29 bar	Metric
204-0600100-NT-50	Backordered	Backordered	POR	FT	6MM	Metric	1	50.0	4	6	Laboratory	Chemicals	180 psi	500 °F	-100 °F	UL 94 V-0	0.023 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	TrueSeal™	29 mm	6 mm	50 ft	0.157 inch	720 psi	Metric
204-0800100-NT-100	Backordered	Backordered	$4.01/foot	FT	8MM	Metric	1	100.0	6	8	Gas Sampling	Chemicals	9 bar	500 °F	-75 °C	ASTM D3307	0.047 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	2 inch	8 mm	100 ft	0.236 inch	36 bar	Metric
204-0800100-NT-25	Backordered	Backordered	$4.70/foot	FT	8MM	Metric	1	25.0	6	8	Steam Plant	Chemicals	9 bar	500 °F	-100 °F	UL 94 V-0	0.032 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	2 inch	8 mm	25 ft	0.236 inch	520 psi	Metric
204-0800100-NT-50	Backordered	Backordered	POR	FT	8MM	Metric	1	50.0	6	8	Semiconductor	Industrial Gases	9 bar	260 °C	-100 °F	USP Class VI	0.032 lb/ft	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	51 mm	8 mm	50 ft	0.236 inch	520 psi	Metric
204-1000100-NT-100	Backordered	Backordered	$10.10/foot	FT	10MM	Metric	1	100.0	8	10	Semiconductor	Chemicals	7 bar	260 °C	-100 °F	UL 94 V-0	0.061 kg/m	Clear	Perfluoroalkoxy Alkanes (PFA)	Metric Compression	2-3/4 inch	0.394 inch	30.5 m	8 mm	62 bar	Metric
