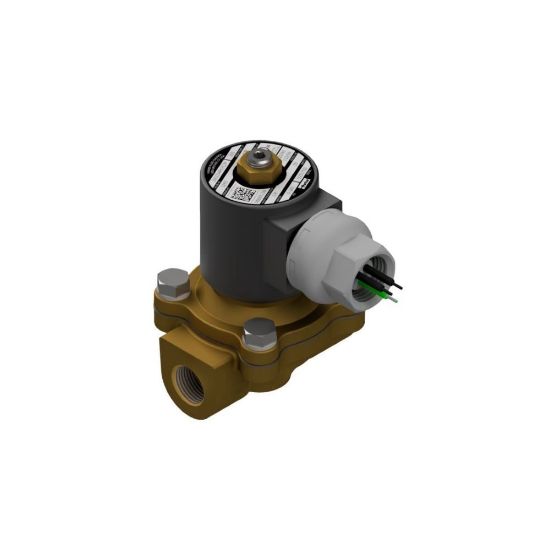

23LC12VN7C8B - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 23LC12VN7C8B

$291.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Body Material	Lead-Free Brass
Configuration	Normally Closed	Voltage	24 VDC
Function	2-Way	Minimum Pressure Differential (psi)	0
Port Size (inch)	3/4 NPT	Orifice Size (inch)	3/4
Maximum Operating Pressure Differential (psig)	250	Division	Fluid Control Division
Port Size	NPT 3/4 inch	Input Voltage	24.0 VDC
Actuation Type	Direct Lift	Power Consumption	22 W
Body Material	Lead-Free Brass	Seal Material	NBR
Specifications Met	CULus Safety Shutoff	Maximum Pressure Differential	250 psig
Configuration	Normally Closed (NC)	Function	2-Way
Coil Specifications Met	IP69	Maximum Fluid Temperature	185 °F
Minimum Pressure Differential	0 psi	Main Flow Coefficient	5 Cv
Exhaust Flow Coefficient	n/a	Installation	IOM7222
Orifice Size	3/4 inch	Preventive Maintenance Kit	7R027
Maximum Ambient Temperature	125 °F
