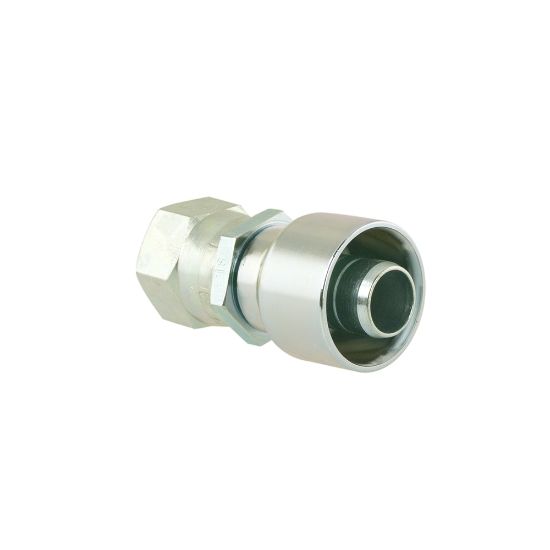

10693N-12-12C - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	245 in stock

SKU 10693N-12-12C

$305.74/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	2.86"
Product Style	Female JIC 37° Swivel	Hose I.D. (inch)	0.75"
Connection 2 Size	1-1/16"-12	Fitting Length	72.6 mm
Shape	Straight	Body Material	Stainless Steel
Maximum Operating Pressure	1500 psi (Dependent on hose)	Industry	Chemicals Processing
Division	Parflex Division	For Fluid Type	Water
Connection 2 Size	1-1/16"-12 inch Thread	Division	Parflex Division
Coating	None	Technology	Fluid & Gas Handling
Connection Length	1-11/16 inch Cut-off allowance (see drawing legend B)	Product Type	Hose Fittings
Hex Size	1-1/8 inch (see drawing legend H)	Hex Size 1	1-1/4 inch (see drawing legend J)
Connection 2 Type	Swivel	Connection 1 Size	3/4 inch Hose I.D.
Brand	Parker	Application	Public Works
Specifications Met	n/a	Product Series	93N
Connection 1 Type	Hose	Configuration	Hose to Port
