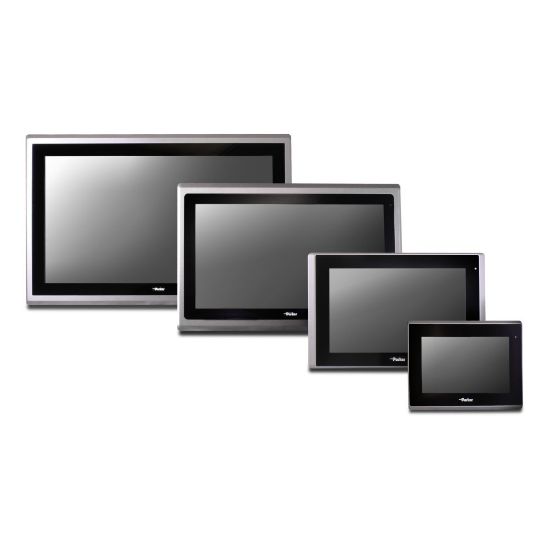

PCA-000-3N3-53 - PCA Industrial PC PowerStation

This product is obsolete. Please contact a Parker Representative for more information. The PCA, Parker's Industrial PC PowerStation offers increased processing power, more memory, and solid state drive technology

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU PCA-000-3N3-53

Products specifications

Attribute name	Attribute value
UOM	EA	Interface Type	No display
Certificates	CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH	Display Size	No Display
Backlight Life	-- Hours	Ingress Protection Rating	IP65 (front bezel)
Division	Electronic Motion and Controls Division	Software	-
Display Size	10 inch	Operating Humidity	10 to 90 % @ 40°C (non-condensing)
Display Type	-	Resolution	--
Client Data Storage	64 GB SSD	Interface Type	No Display
Operating Temperature	32 to 122 °F	CPU	1.86 GHz Quad Core
System Memory	4GB DRAM (DDR3L 1600 MHz)	Specifications Met	FCC Class A
Inputs/Outputs	RS-232/422/485	Input Voltage	12 to 24 VDC
Operating System	Windows 7P	Product Type	Industrial PC

Product resources

Compliance, Certifications & Safety

XT-IX-PCA Compliance Documents (PDF)

Literature and Reference Materials
