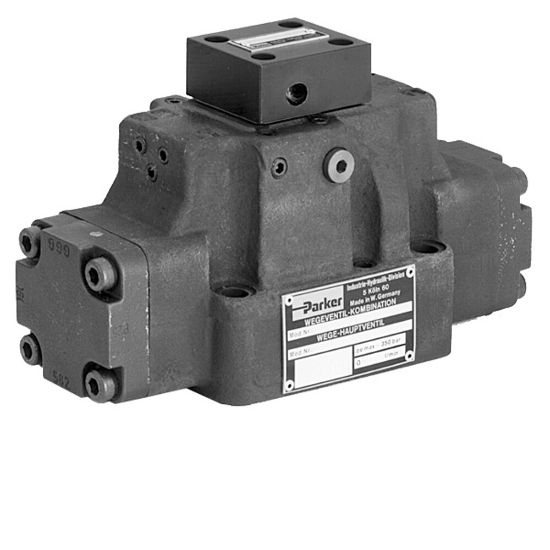

D8P2C2N - Oil Operated Directional Control Valve - D8P Series

Parker’s D8P directional control valves are 5-chamber, pilot operated valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU D8P2C2N

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA DO8, CETOP 8, DIN NG25
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
Maximum Flow Rate	Up to 160 GPM depending on spool	Mounting Type	Subplate, Manifold
Minimum Operating Temperature	-4	Body Material	Grey Iron
Weight	41.7	Actuation Type	Hydraulic Pressure
Spool Code	4-way, 3 position; All Ports Open	Maximum Operating Pressure	5000
Maximum Operating Temperature	+140	Maximum Flow Rate	160
Size	NFPA DO8, CETOP 8, DIN NG25	Division	Hydraulic Valve Systems Division
Spool Position	Double operator, 3 position, spring centered	Valve Type	Oil Operated Directional Control Valve
Seal Material	Nitrile	Options	N/A

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve Catalog - D8P Series (PDF)
