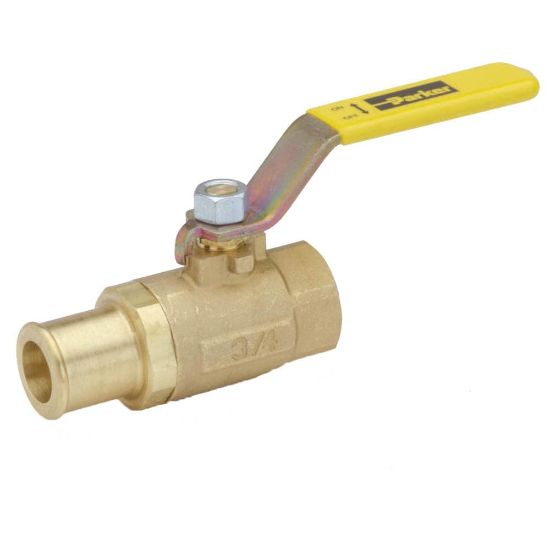

V500P-12-16HB - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU V500P-12-16HB

$74.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	3/4
Connection 1 Solder O.D. (inch)	na	Style	Female to Hose Barb
Locking Mechanism	Non-Locking	Connection 2 Thread Style	Female Pipe
Maximum Working Pressure (psi)	150	Connection 1 Thread Style	Hose Barb
Connection 1 Thread Size (inch)	1	Handle	Steel Lever
Shape	In Line	Vented	No
Connection 2 Solder O.D. (inch)	na	Shape	In-Line
Operation Type	n/a	Body Material	Brass
Actuation Type	Manual	Handle Type	Lever
Maximum Operating Pressure	10	Configuration	Female-Female PTF Ports
Maximum Operating Temperature	350	Division	Fluid System Connectors Division
Maximum Flow Rate	25	Seat Material	PTFE
Connection Type	NPT, Straight Thread Solder	Product Type	Brass Series 500 Ball Valve
Connection Size	3/4	Function	2-Way, Normally Closed, Normally Open
Seal Material	PTFE	Ball Material	Chrome Plated Brass
Orifice Size	.69	Mounting Type	Panel, In-Line
Minimum Operating Temperature	0
