*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

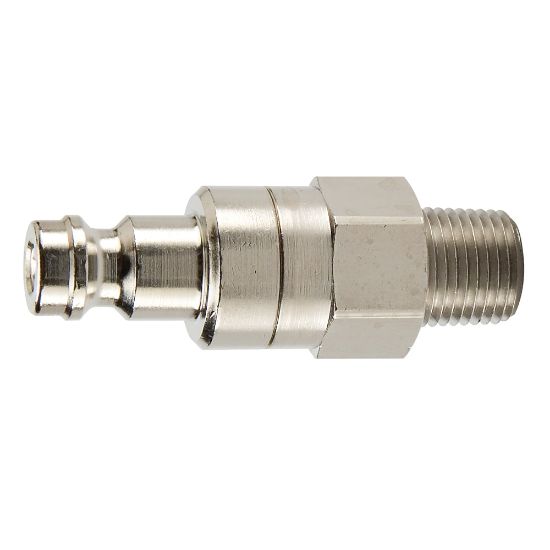

DM-122-2MP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU DM-122-2MP

$20.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Thread Size	1/8 - 27	Body Size	1/8
Connection Type	Male UNF	Hex Size	0.55 inch
Plating Type	Nickel Plated	Minimum Operating Temperature	-15.0 °F
Product Type	Push to connect	Flow Rate	0.8 Gal/min
Application	Fluid or gas, low pressure	Body Material	Brass
Maximum Operating Pressure	250.0 psi	Maximum Operating Temperature	400.0 °F
Seal Material	Fluorocarbon	Valve Type	Poppet
Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
