*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

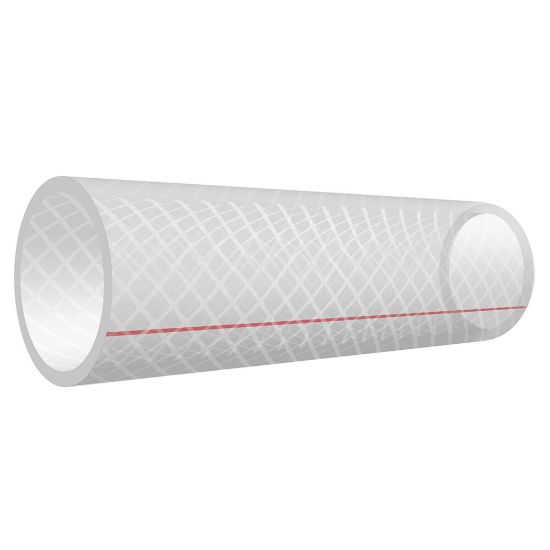

7581-1001 - THORO-BRAID® PVC Clear General Service Hose, Series 7581

Name: 7581-1001 - THORO-BRAID® PVC Clear General Service Hose, Series 7581
SKU: 7581-1001
Price: 3.82 USD
Availability: InStock

Thoro-Braid PVC Clear General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 140°F and 355 psi, Series 7581

Manufacturer: Parker

Availability:

11 in stock

Olivette, MO

Partner Available:

1289 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7581-1001

$3.82/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	140	Minimum Operating Temperature	-10 °C
Minimum Bend Radius	9 inch	Hose Reinforcement Material	2 Plies of Textile with Longitudinal Red Tracer Yarn
Cover Structure	Smooth	Cover Material	PVC
Weight	0.32 lb/ft	Maximum Operating Pressure	140 psi
Inside Diameter	1 inch	Outside Diameter	1.300 inch
Package Type	Coil	Specifications Met	FDA
Application	PVC Hose	Division	Hose Products Division
Length per Package	300 ft	Cover Color	Transparent
Media	Food Abrasive Powders (Sugar)	Maximum Operating Temperature	140 °F
Hose Inner Tube Material	Clear

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
