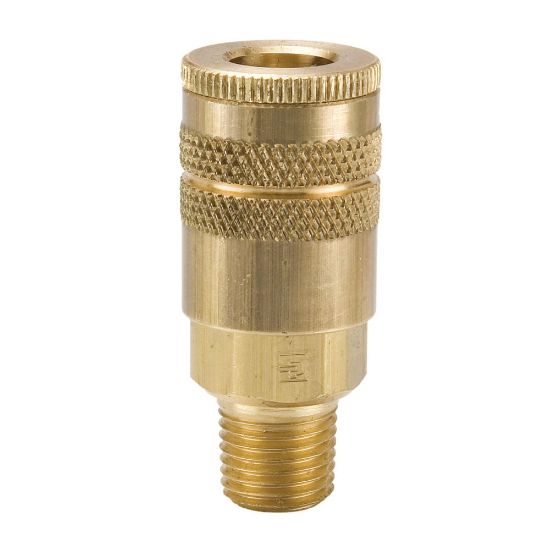

B22Y - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU B22Y

$21.04/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Thread Style	Male	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Application	Air
Sleeve Type	Manual	Body Material	Brass
Maximum Operating Pressure	300 psi	Plating Type	na
Coupling Half	Coupler	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Minimum Operating Temperature	-30 °F	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Lock Type	Locking balls
Media	Low pressure fluids and compressed air	Valve Type	Tubular
Division	Quick Coupling Division
