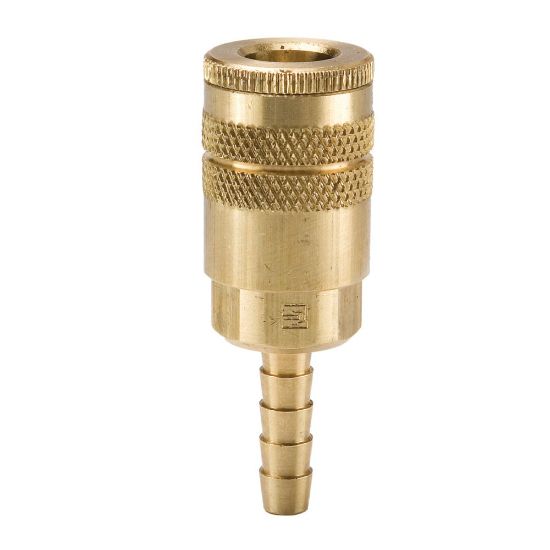

B20-4B - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: B20-4B - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: B20-4B
Price: 23.21 USD
Availability: LimitedAvailability

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

2 Limited Stock

Wichita, KS

Partner Available:

55 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B20-4B

$23.21/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Hose barb	Thread Style	na
Connection Hose I.D. (inch)	5/16	Maximum Operating Pressure	300 psi
Body Material	Brass	Minimum Operating Temperature	-40 °F
Application	Air	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Dimensional Weight	0.02670863309352518 lb	Sleeve Type	Manual
Lock Type	Locking balls	Media	Low pressure fluids and compressed air
Plating Type	na	Coupling Half	Coupler
Valve Type	Tubular	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
