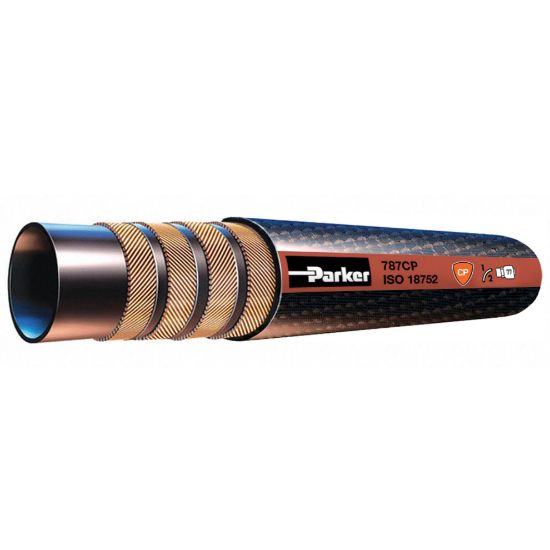

787CP-20 - Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose

Part of the GlobalCore family of robust hydraulic hoses. Parker’s 787 hose delivers 5000 PSI constant working pressure in a lightweight and easy to bend product.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 787CP-20

$122.48/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	Critical Protection	Division	Hose Products Division
Cover Color	Black	Media	Petroleum Hydraulic Fluids
Size	-20	Compatible Fitting	77 Series
Maximum Operating Temperature	257 °F	Hose Inner Tube Material	Proprietary Synthetic Rubber Compound
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	210 mm
Specifications Met	MSHA TC, ST CP covers only	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire Compact
Cover Material	Proprietary Critical Protection Cover	Weight	2.89 kg/m
Inside Diameter	31.5 mm	Maximum Operating Pressure	5000 psi
Outside Diameter	1.77 inch	Application	Petroleum Base Hydraulic Fluids
