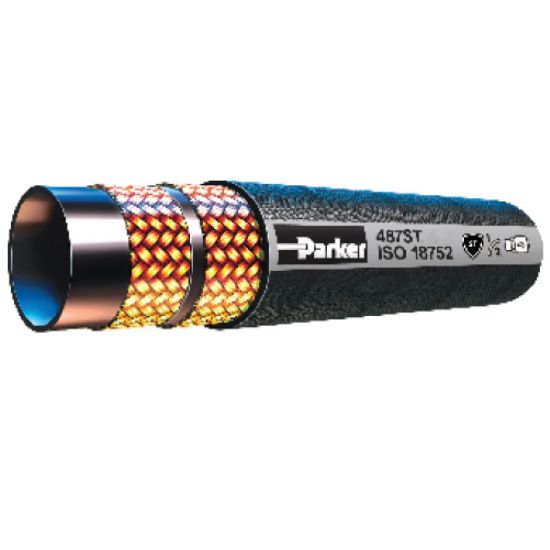

487ST-6 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	7195 in stock

SKU 487ST-6

$10.78/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-6
Hose Cover Type	SuperTough	Division	Hose Products Division
Application	Petroleum Base Hydraulic Fluids	Media	Lubricants
Maximum Operating Pressure	4000 psi	Maximum Operating Temperature	125 °C
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 18752, Type AC
Weight	0.42 kg/m	Outside Diameter	0.680 inch
Size	-6	Cover Material	Synthetic Rubber Super Abrasion Resistant
Inside Diameter	10 mm	Compatible Fitting	43 Series
Minimum Bend Radius	65 mm	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	2 Braids of Steel Wire	Nominal Hose Inside Diameter	10 mm
