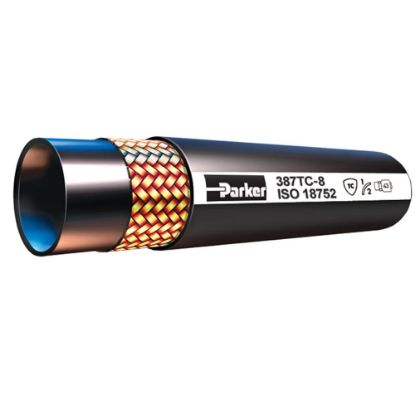

387TC-20 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

Name: 387TC-20 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose
SKU: 387TC-20
Price: 39.04 USD
Availability: InStock

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Manufacturer: Parker

Availability:

1433 in stock

Wichita, KS	737
Olivette, MO	216
Springfield, MO	181
Peoria, IL	108
Kansas City, KS	84
Joplin, MO	60
Decatur, IL	42

Partner Available:

9725 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 387TC-20

$39.04/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	ToughCover	Size	-20
Division	Hose Products Division	Nominal Hose Inside Diameter	31 mm
Inside Diameter	31.5 mm	Weight	1.74 lb/ft
Outside Diameter	1.820 inch	Maximum Operating Pressure	21 MPa
Hose Cover Type	Tough Cover	Minimum Operating Temperature	-40 °F
Cover Material	Synthetic Rubber Abrasion Resistant	Application	Lubricating Oils
Hose Reinforcement Material	4 Spirals	Minimum Bend Radius	8-1/4 inch
Specifications Met	ISO 18752, Type CC	Hose Inner Tube Material	Synthetic Rubber
Maximum Operating Temperature	257 °F	Compatible Fitting	43 Series
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Media	Petroleum Hydraulic Fluids
