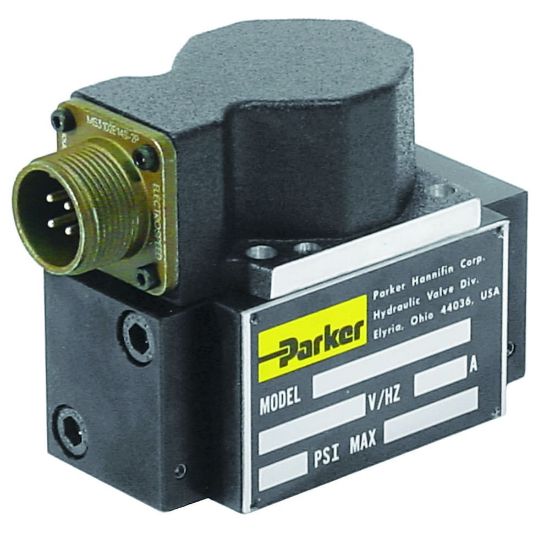

SE2NAAFBVA25 - Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series

Parker’s SE05, SE10, SE15 & SE2N series valves are two stage, 4-way, flapper and nozzle style servovalves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU SE2NAAFBVA25

$32,571.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting	1.375in; 34.93mm
Flow Rate (gpm)	25	Size	34.93 mm
Maximum Operating Pressure	3000 PSI	Additional Options	Consult catalog for additional features
Resistance	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	95 L/min	Maximum Operating Temperature	+266 °F
Seal Material	Fluorocarbon	Operating Pressure	210 bar
Response Time	Standard	Product Style	Servovalve
Minimum Operating Temperature	-22 °F	Materials of Construction	Aluminum
Actuation Type	Hydraulic Pressure	Body Material	Aluminum
Weight	1.1 kg	Maximum Operating Pressure	210 bar

Product resources

Literature and Reference Materials

SE05/SE10/SE15 Series Catalog Pages (PDF)
