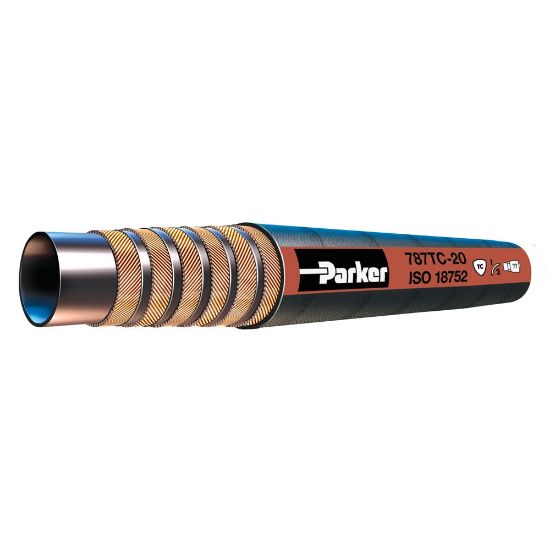

787TC-20 - Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose

Name: 787TC-20 - Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose
SKU: 787TC-20
Price: 90.44 USD
Availability: InStock

Part of the GlobalCore family of robust hydraulic hoses. Parker’s 787 hose delivers 5000 PSI constant working pressure in a lightweight and easy to bend product.

Manufacturer: Parker

Availability:

572 in stock

Olivette, MO	295
Wichita, KS	122
Springfield, MO	66
Peoria, IL	48
Kansas City, KS	36
Decatur, IL	2

Partner Available:

7716 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 787TC-20

$90.44/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	ToughCover	Maximum Operating Temperature	257 °F
Hose Inner Tube Material	Proprietary Synthetic Rubber Compound	Compatible Fitting	77 Series
Size	-20	Division	Hose Products Division
Minimum Bend Radius	8-1/4 inch	Cover Material	Synthetic Rubber
Minimum Operating Temperature	-40 °F	Media	Petroleum Hydraulic Fluids
Outside Diameter	44.9 mm	Application	Petroleum Base Hydraulic Fluids
Specifications Met	ISO 18752, Type DC	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire Compact
Inside Diameter	31.5 mm	Weight	2.89 kg/m
Maximum Operating Pressure	35 MPa
