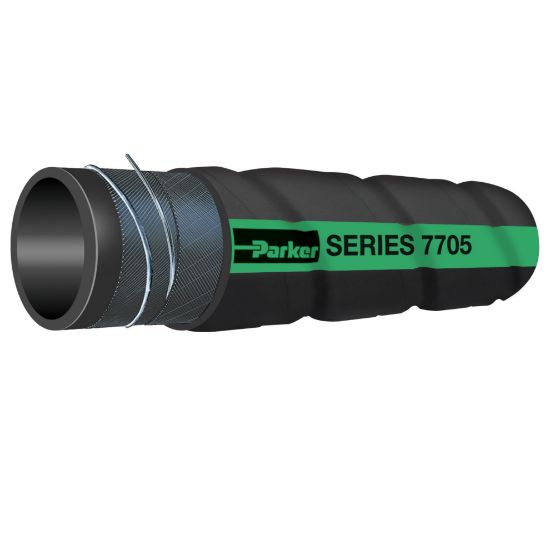

7705-4000 - GREEN LABEL™ Corrugated Petroleum Transport Suction Hose, Series 7705

Green Label Corrugated Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of biodiesel, oil and refined fuels in applications to 180°F and 200 psi, Series 7705

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	75 in stock

SKU 7705-4000

$72.17/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	150
Hose I.D. (inch)	4	Division	Hose Products Division
Application	Petroleum Transfer	Media	Fuels (Diesel) - Check fuel type with our catalogue chart.
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	180 °F
Minimum Operating Temperature	-20 °F	Specifications Met	n/a
Weight	2.33 lb/ft	Outside Diameter	4.530 inch
Cover Material	Nitrile/PVC	Inside Diameter	4 inch
Compatible Fitting	n/a	Minimum Bend Radius	6 inch
Vacuum Pressure Rating	Full	Hose Inner Tube Material	Nitrile
Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix	Cover Color	Black
Design Factor	4:1	Package Type	Coil
Length per Package	100 ft	Cover Structure	Wrapped
