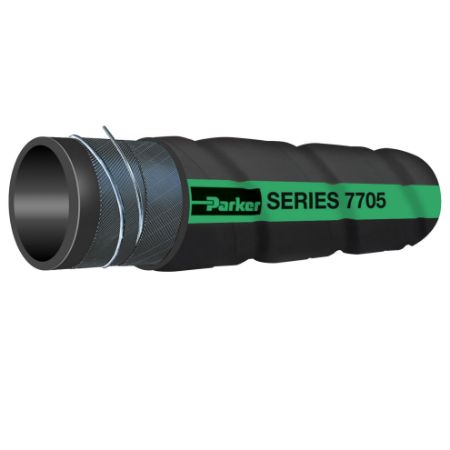

GREEN LABEL™ Corrugated Petroleum Transport Suction Hose, Series 7705
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7705 Green Label Corrugated Oilfield Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty and B100 biodiesel tank truck applications. The lightweight, corrugated construction provides crush resistance and kink resistance for unimpeded flow, additional flexibility for easy handling and resistance to abrasion and weathering for maximum performance.
Markets:
• General Industrial
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Black nitrile for B100 biodiesel, fuel and oil resistance to 180°F.
• Reinforcement: Multiple textile plies for strength and durability, and a dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile/PVC for abrasion, heat, oil resistance and durability.
Applications:
-media
• Biodiesel (to B100 in dedicated and non-dedicated service)
• Diesel
• Ethanol
• Gasoline
-usage
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks
Safety/Technical:
• Design Factor: 4:1
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Maximum Working Pressure (psi) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Vacuum Pressure Rating | Hose Inner Tube Material | Hose Reinforcement Material | Cover Color | Design Factor | Package Type | Length per Package | Cover Structure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7705-1250 | 700 in stock | Backordered | POR | FT | 1-1/4 | 200 | Hose Products Division | Petroleum Transfer | Fuels (Diesel) - Check fuel type with our catalogue chart. | 200 psi | 180 °F | -20 °F | n/a | 1.04 kg/m | 1.690 inch | Nitrile/PVC | 1-1/4 inch | n/a | 63.5 mm | Full | Nitrile | 2 Plies of Textile with Dual Wire Helix | Black | 4:1 | Coil | 100 ft | Corrugated | |
| 7705-4000 | Backordered | 75 in stock | $72.17/foot | FT | 4 | 150 | Hose Products Division | Petroleum Transfer | Fuels (Diesel) - Check fuel type with our catalogue chart. | 150 psi | 180 °F | -20 °F | n/a | 2.33 lb/ft | 4.530 inch | Nitrile/PVC | 4 inch | n/a | 6 inch | Full | Nitrile | 2 Plies of Textile with Dual Wire Helix | Black | 4:1 | Coil | 100 ft | Wrapped |
