*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

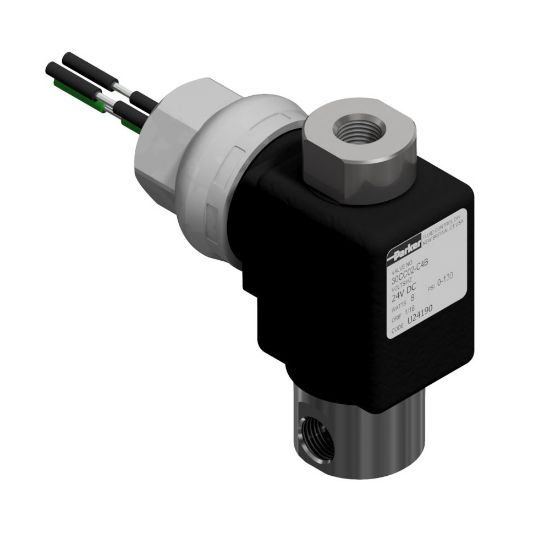

30CC02GV4C4F - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 30CC02GV4C4F

$133.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	FKM
Main Flow Coefficient	0.09 Cv	Minimum Pressure Differential	0 psi
Input Voltage	120/60 VAC	Function	Normally Closed (NC)
Port Size	1/8 inch	Media	General Purpose
Installation	IOM 304	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Ingress Protection Rating	NEMA 4	Insulation Class	F (155°C)
Division	Fluid Control Division	Maximum Ambient Temperature	135 °F
Valve Type	3-Way	Configuration	Pressure In Body - Out Sleeve
Port Type	NPT	Actuation Type	Direct Acting
Preventive Maintenance Kit	4R002	Maximum Pressure Differential	130 psi
Body Material	Stainless Steel 303	Exhaust Orifice Size	1/16 inch
Maximum Fluid Temperature	240 °F	Power Consumption	10 W
Orifice Size	1/16 inch	Specifications Met	CE
Exhaust Flow Coefficient	0.10 Cv

Product resources

Literature and Reference Materials
