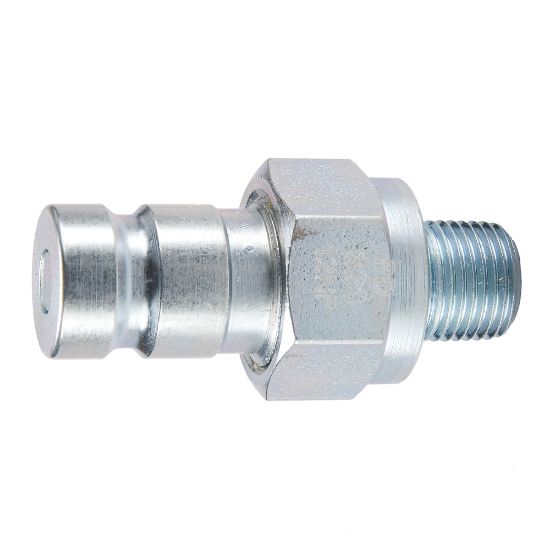

PD341 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Name: PD341 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series
SKU: PD341
Price: 20.53 USD
Availability: InStock

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:

68 in stock

Kansas City, KS	46
Springfield, MO	4
COLUMBIA, MO	4
Wichita, KS	2
Olivette, MO	2
WICHITA, KS	2
Kansas City, KS	2
Peoria, IL	2
Decatur, IL	2
TOPEKA, KS	1
Olivette, MO	1

Partner Available:

785 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PD341

$20.53/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Thread Size (inch)	7/16 - 20	Connection Type	Male UNF
Tube Size (inch)	na	Valve Type	Non-spill
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Body Size	1/8 inch	Seal Material	Nitrile
Body Material	Steel	Maximum Operating Pressure	6000 psi
Minimum Operating Temperature	-40 °F	Specifications Met	SAE J1502
Flow Rate	0.8 Gal/min	Application	Diagnostics
Dimensional Weight	0.009997002398081534 lb	Product Type	Push to Connect
Hex Size	0.69 inch	Plating Type	Zinc with Clear Trivalent Chromate

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
