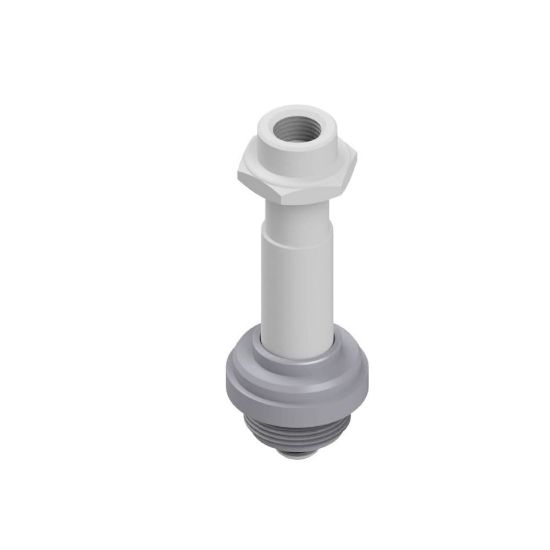

309CL5GV4 - G4 Series Miniature Solenoid Valves

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 309CL5GV4

$82.31/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Pressure Differential	0 psi
Division	Fluid Control Division	Media	General Purpose
Function	Normally Closed (NC)	Main Flow Coefficient	0.09 Cv
Seal Material	FKM	Exhaust Orifice Size	1/16 inch
Body Material	Stainless Steel 303	Valve Type	3-Way
Coil Type	Requires G4 Series Coil Kit	Maximum Ambient Temperature	135 °F (AC)
Exhaust Flow Coefficient	0.10 Cv	Orifice Size	1/16 inch
Maximum Pressure Differential	130 psi (AC or DC)	Actuation Type	Direct Acting
Preventive Maintenance Kit	n/a	Port Type	Cartridge
Configuration	Pressure In Body - Out Sleeve	Installation	IOM CV4
Port Size	3/4-24 UNS-2A inch	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Maximum Fluid Temperature	240 °F	Power Consumption	8 W (DC)
