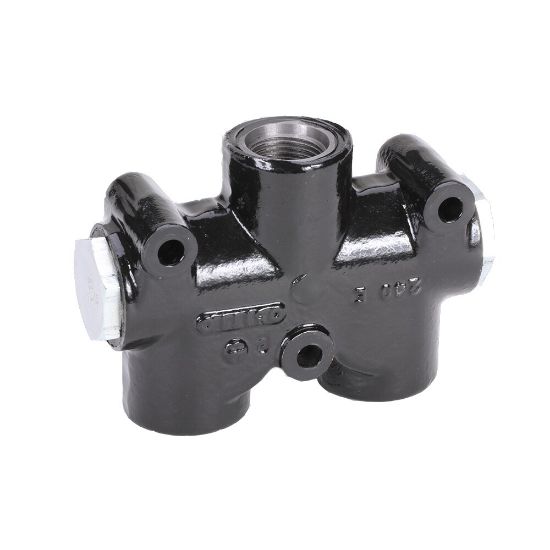

PDC-10-50 - Flow Divider – PD Series

Parker’s PD and PDC accessory valves are pressure compensated flow dividers that are designed for applications where two separate hydraulic circuits are to be served from a single pump.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU PDC-10-50

$473.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Ratio	50/50
Port Size	SAE-10	Maximum Operating Pressure	2500 PSI
Mounting Type	In-line	Flow Rate	5-20 GPM
Configuration	Flow Divider/Combiner	Actuation Type	Hydraulic Pressure
Weight	7 lb	Ratio	50/50
Maximum Operating Pressure	2500 psi	Body Material	High Strength Cast Iron
Minimum Operating Temperature	-40 °F	Mounting Type	In-Line
Flow Rate	5-20 Gal/min	Seal Material	Nitrile
Connection Size	#10	Function	Flow Divider
Connection Type	SAE	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	N/A	Maximum Operating Temperature	+200 °F
