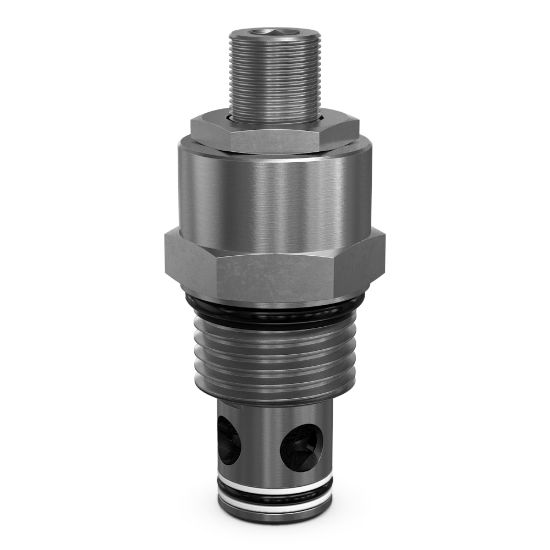

FV101KV - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FV101KV

$66.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Needle Type	Coarse
Adjustment Mechanism	Knob	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Flow Rate	12 GAL/MIN, 45 L/MIN	Seal Material	Fluorocarbon
Cavity Size	C10-2	Minimum Operating Temperature	-26 °C
Adjustment Mechanism	Knob	Needle Type	Coarse
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+400 °F	Maximum Inlet Pressure Rating	3000 psi
Connection Size	N/A	Function	2-Way
Operation Type	Manually operated	Division	Hydraulic Systems Division
Connection Type	N/A	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	12 Gal/min	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Needle w/Reverse Check
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	45 L/min
Actuation Type	Manual	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400 °F	Installation Torque	16 lb-ft
Weight	0.5 lb	Maximum Operating Pressure	210 bar
Body Material	N/A
