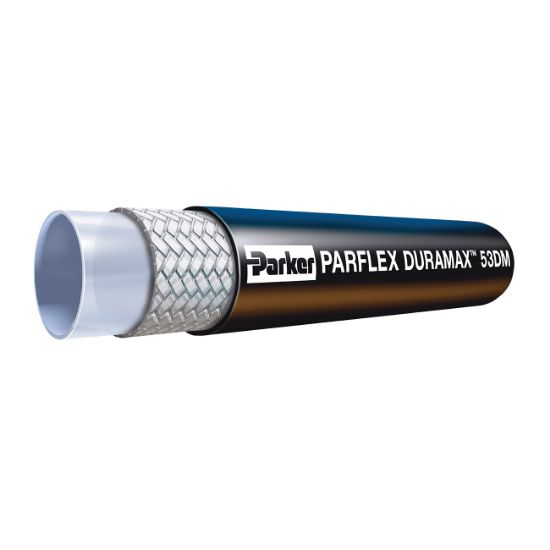

53DM-10 - DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM

Name: 53DM-10 - DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM
SKU: 53DM-10
Price: 9.03 USD
Availability: InStock

Parker 100R18 compliant hose, 53DM/538DM low temperature hydraulic hose, features exceptional flexibility with temperatures as low as -70°F. Single or bonded hose assemblies.

Manufacturer: Parker

Availability:

49 in stock

TOPEKA, KS

Partner Available:

44 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 53DM-10

$9.03/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Hose Style	Natural, Single	Outside Diameter	1.030 inch
Maximum Operating Pressure	3000 psi	Inside Diameter	16 mm
Weight	0.33 kg/m	Maximum Operating Temperature	212 °F
Compatible Fitting	56 Series	Division	Parflex Division
Size	-10	Hose Inner Tube Material	Copolyester
Media	Water	Design Factor	4:1
Cover Material	Copolyester	Hose Reinforcement Material	Fiber
Minimum Operating Temperature	-70 °F	Minimum Bend Radius	102 mm
Specifications Met	SAE J517 and 100R18	Application	Hydraulics
