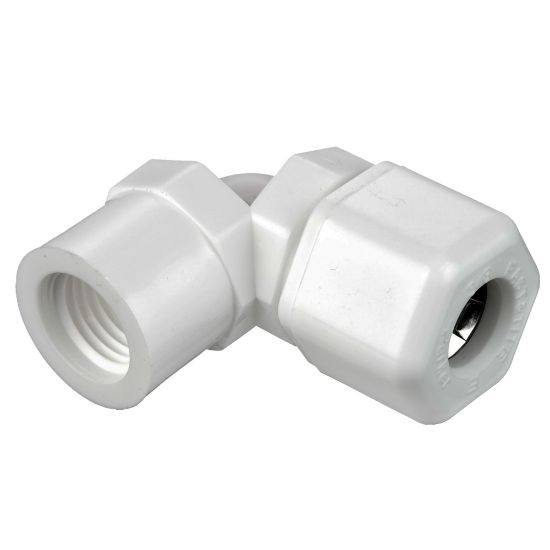

W6FE4 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	10 in stock

SKU W6FE4

$13.70/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Body Material	White Polypropylene	Connection 2 Thread Size	1/4"
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Connection 2 Type	NPTF
Configuration	Tube to Female Pipe	Connection 1 Type	Compression
Minimum Operating Temperature	-18 °C	Maximum Operating Pressure	150 psi
Specifications Met	FDA	Application	Filtration
Body Material	Polypropylene	Seal Material	Nitrile (O-Ring)
Gripping Ring Material	Stainless Steel AISI 302	Tube Material	Thermoplastic
Division	Fluid System Connectors Division	For Fluid Type	Water
Maximum Operating Temperature	100 °C
