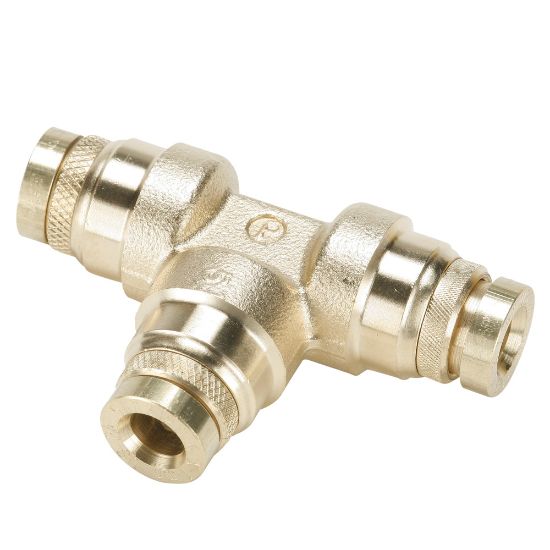

JPMTB6 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 57 days
Partner Available:	Backordered

SKU JPMTB6

$68.37/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 1 Size	6 mm	Connection 1 Type	Push-to-Connect
Product Style	Tube to Tube	Connection 2 Size	6 mm
Connection 2 Type	Push-to-Connect	Connection 3 Size	6 mm
Connection 3 Type	Push-to-Connect	Body Material	Brass
Shape	Tee	Division	Fluid System Connectors Division
Maximum Operating Pressure	250 psi	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Seal Material	Buna N (O-Ring)
Connection 2 Size	n/a	Maximum Operating Temperature	200 °F
Division	Fluid System Connectors Division	Connection 1 Size	n/a
Tube Material	Nylon Tubing SAE J844 Type A & B	Connection 3 Size	n/a
Technology	Fluid & Gas Handling	Specifications Met	DIN 74324
Materials of Construction	Brass (Collet)	Application	Accessories
Minimum Operating Temperature	-40 °C	Brand	Parker
Connection 2 Type	Push-to-Connect
