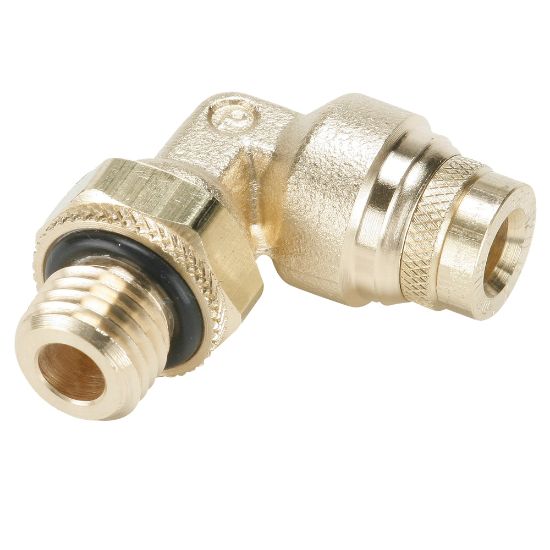

C8UPMTB6-M12 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 47 days
Partner Available:	Backordered

SKU C8UPMTB6-M12

$35.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	12 mm
Connection 1 Type	Push-to-Connect	Product Style	Tube to Pipe
Connection 2 Size	M12x1.5	Connection 3 Size	N/A
Connection 3 Type	N/A	Shape	Rigid 90° Elbow
Connection 2 Type	Male M12 Thread	Seal Material	Buna N (O-Ring)
Connection 2 Size	n/a	Maximum Operating Temperature	93 °C
Tube Material	Nylon Tubing SAE J844 Type A & B	Technology	Fluid & Gas Handling
Connection 3 Size	n/a	Connection 1 Size	6 mm Tube O.D.
Minimum Operating Temperature	-40 °C	Brand	Parker
Specifications Met	DIN 74324	Connection 2 Type	Metric
Materials of Construction	Brass (Collet)	Application	Accessories
Configuration	Tube to Pipe	Maximum Operating Pressure	250 psi
Body Material	Brass	Connection 1 Type	Push-to-Connect
Shape	Elbow 90°	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division
