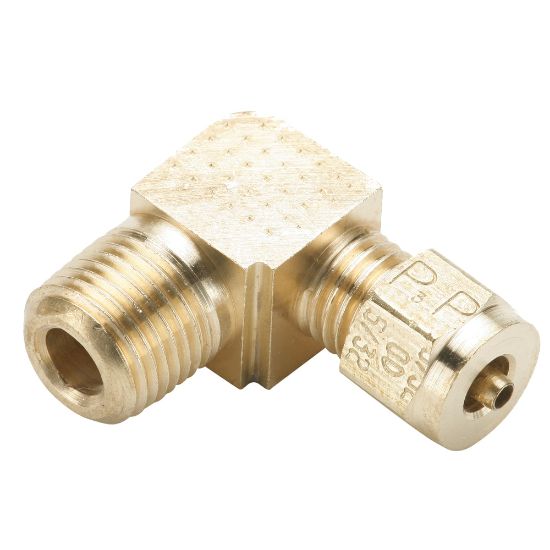

269TF-2-2 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	39 in stock

SKU 269TF-2-2

$18.77/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 1 Type	Compression	Product Style	Tube to Pipe
Connection 2 Size	1/8 inch	Connection 1 Size	1/8 inch
Connection 2 Type	Male Pipe Thread	Brand	Parker
Application	Air Shift Transmission, Seat Controls, Dash Controls	Sleeve Material	Brass
Collet Material	Brass	Tube Material	SAE J844 Type A & B Nylon Tubing
Technology	Fluid & Gas Handling	Media	Compressed Air
Connection 1 Size	Compression	Minimum Operating Temperature	-40 °C
Division	Fluid System Connectors Division	Maximum Operating Temperature	+200 °F
Connection 2 Tube Outside Diameter	na	Maximum Operating Pressure	150 psi
O-Ring Material	Nitrile	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
