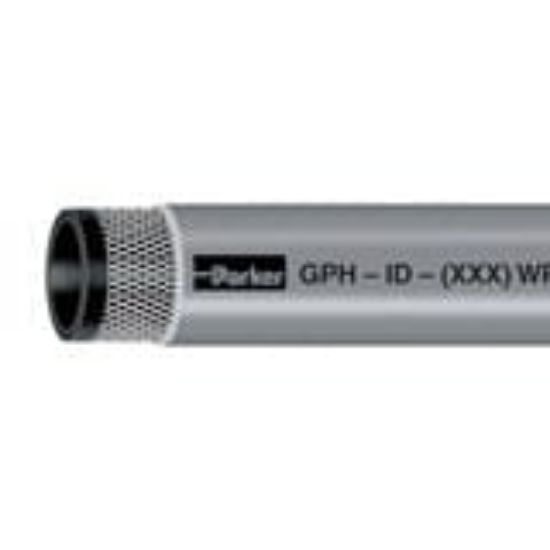

GPH-8GRA500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2145 in stock

SKU GPH-8GRA500RL

$4.11/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Color	Gray	Maximum Working Pressure (psi)	300
Cover Color	Gray	Weight	0.17 lb
Inside Diameter	12.7 mm	Maximum Operating Pressure	300 psi
Vacuum Pressure Rating	17 Inch-Hg	Maximum Operating Temperature	65 °C
Compatible Fitting	HY Series	Division	Hose Products Division
Length per Package	500 ft	Hose Inner Tube Material	Black
Media	Air	Cover Structure	Smooth
Cover Material	PVC	Minimum Bend Radius	1.5 inch
Minimum Operating Temperature	-15 °F	Application	PVC Hose
Hose Reinforcement Material	2 Plies of Textile	Outside Diameter	20.3 mm
Package Type	Coil

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
