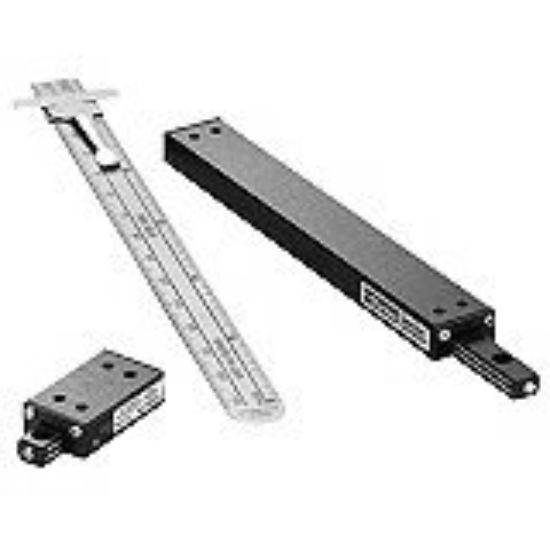

3901 - Ball Bearing Guided, Miniature Manual Linear Slides - 3000 Series

The 3000-series of miniature ball-bearing guided manual linear slides offer travels of up to 4", payloads up to 56 lbs, plus exceptional smoothness, extremely low friction and a very good straightness and flatness accuracy.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU 3901

Products specifications

Attribute name	Attribute value
UOM	EA	Travel (inch)	0.5
Type	English Model / with Aperture	Width (inch)	1.25
Payload (lbs)	6	Width	31.8 mm
Division	Electronic Motion and Controls Division	Maximum Travel	0.5 inch
Load Capacity	6 lb	Mounting Option	English Model with Aperture
Number of Axes	1	Product Series	3000 Series
Product Type	Linear Slide	Bearing Type	Ball

Product resources

Literature and Reference Materials

Parker Manual Slides and Positioners Flyer (PDF)
3000 Series Manual Linear Slides - Catalog (PDF)
Manually Driven Positioning Slides and Stages - Catalog (Includes dimensions and specs) (PDF)
3000 Series Manual Linear Slides - User Guide (PDF)
Manual Products Engineering Reference (PDF)
