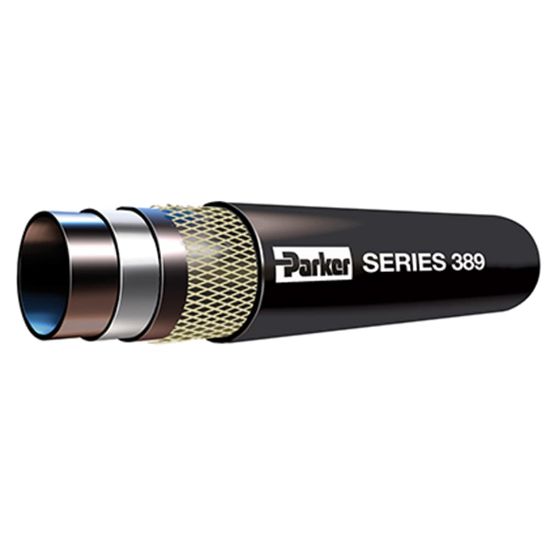

38906 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389

Super-Flex FL-7 Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 389.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	666 in stock

SKU 38906

$4.22/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	100	Maximum Operating Temperature	257 °F
Compatible Fitting	HY Series	Hose Inner Tube Material	Black
Media	Fuels (Biodiesel to B20 in dedicated and non-dedicated service)	Vacuum Pressure Rating	24 Inch-Hg
Cover Color	Black	Division	Hose Products Division
Length per Package	250 ft	Application	Specialty
Specifications Met	SAE J30R14, Type 2	Outside Diameter	0.625 inch
Package Type	Reel	Inside Diameter	9.8 mm
Weight	0.18 kg/m	Maximum Operating Pressure	100 psi
Cover Material	Chloroprene Rubber (CR)	Cover Structure	Smooth
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	63.5 mm
Hose Reinforcement Material	2 Plies of Aramid
