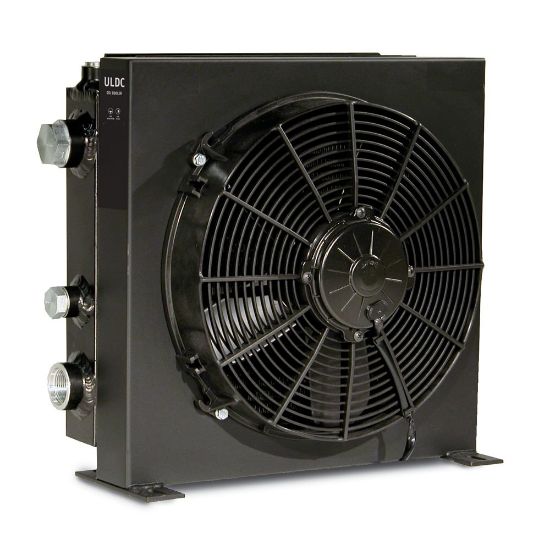

ULDC-007-A-140SB - Air Oil Cooler with DC Motor - ULDC Series - (Americas)

ULDC Series mobile air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 37hp of cooling and are suitable for most mobile applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULDC-007-A-140SB

$2,535.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thermoswitch	140°F
Bypass Options	65 psi External Hose Bypass	Motor Type	12 VDC
Size	ULDC-007	Noise Level	71 dBA
Flow Rate	33.0 Gal/min	Materials of Construction	Aluminum
Specifications Met	n/a	Maximum Fluid Temperature	250 °F
Motor Power Output Rating	0.27 HP	Weight	9 kg
Connection Thread Size	1-5/16"-12 inch	Maximum Cooling Capacity	7.2 kW
Maximum Operating Pressure	20.7 bar	For Fluid Type	Water Glycol
Height	330.2 mm	Division	Accumulator and Cooler Division
Width	172.7 mm	Length	13 inch
Port Size	1	Input Voltage	12 VDC
