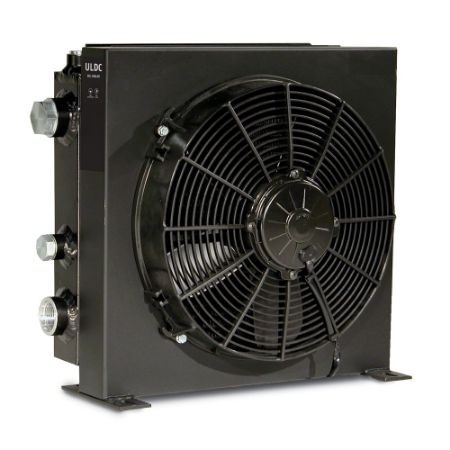

Air Oil Cooler with DC Motor - ULDC Series - (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's ULDC Series Air Oil Cooler is a compact mobile hydraulic oil cooler providing quiet fan/motor operation, low pressure drop and high cooling system capability. These coolers utilize a robust bar and plate construction, providing a more efficient and compact design when compared to traditional tube and fin construction. The ULDC Series features either 12 volt or 24 volt DC motors.

Markets:
• Construction
• Forestry
• Material Handling
• Agriculture
• Automotive
• Marine & Offshore
• Oil & Gas
• Renewable & Wind Energy
• Power Generation

Features and Benefits:
• Up to 37hp of cooling capacity (70°F ETD)
• Compact design results in lighter weight, higher cooling capacity, and lower pressure drop
• Optimized design results in reliable and long-lasting cooling with low service and maintenance costs
• Quiet fan/motor design due to optimization of materials
• Several options available: Thermal switch, Pressure bypass, Air filter, Fan guard/screen, etc.

Applications:
• Aerial Lift Equipment
• Agriculture Machinery
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Turf Equipment
• Vocational Equipment and Special Use Work Vehicles

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Motor Type	Bypass Options	Size	Thermoswitch	Length	Input Voltage	Port Size	Motor Power Output Rating	Specifications Met	Flow Rate	Noise Level	Maximum Fluid Temperature	Weight	Maximum Operating Pressure	Connection Thread Size	Materials of Construction	Maximum Cooling Capacity	Division	Width	Height	For Fluid Type
ULDC-004-A-000SW	Backordered	Backordered	$1,121.40/each	EA	12 VDC	no bypass	ULDC-004	None	10.5 inch	12 VDC	1	0.13 HP	n/a	106.0 L/min	63 dBA	121 °C	13 lb	300 psi	1-5/16"-12 inch	Glass Fiber Reinforced Polypropylene	4.7 kW	Accumulator and Cooler Division	152.4 mm	254 mm	Phosphate Ester
ULDC-004-A-120SW	Backordered	14 in stock	$1,926.99/each	EA	12 VDC	no bypass	ULDC-004	120°F	10.5 inch	12 VDC	1	0.13 HP	n/a	106.0 L/min	63 dBA	250 °F	13 lb	20.7 bar	1-5/16"-12 inch	Glass Fiber Reinforced Polypropylene	6.3 HP	Accumulator and Cooler Division	152.4 mm	10 inch	Mineral Oil
ULDC-004-B-000SW	Backordered	Backordered	$1,121.40/each	EA	24 VDC	no bypass	ULDC-004	None	10.5 inch	24 VDC	1	0.13 HP	n/a	106.0 L/min	63 dBA	250 °F	6 kg	300 psi	1-5/16"-12 inch	Aluminum	4.7 kW	Accumulator and Cooler Division	152.4 mm	254 mm	Water Glycol
ULDC-004-B-120SW	Backordered	Backordered	$1,482.30/each	EA	24 VDC	no bypass	ULDC-004	120°F	254 mm	24 VDC	1	0.13 HP	n/a	106.0 L/min	63 dBA	250 °F	13 lb	20.7 bar	1-5/16"-12 inch	Steel	6.3 HP	Accumulator and Cooler Division	152.4 mm	10 inch	Oil/Water Emulsion
ULDC-004-B-140SW	Backordered	Backordered	$1,482.30/each	EA	24 VDC	no bypass	ULDC-004	140°F	254 mm	24 VDC	1	0.13 HP	n/a	106.0 L/min	63 dBA	121 °C	13 lb	20.7 bar	1-5/16"-12 inch	Steel	4.7 kW	Accumulator and Cooler Division	152.4 mm	10 inch	Water Glycol
ULDC-004-B-160SW	Backordered	Backordered	$1,482.30/each	EA	24 VDC	no bypass	ULDC-004	160°F	254 mm	24 VDC	1	0.13 HP	n/a	28.0 Gal/min	63 dBA	121 °C	13 lb	300 psi	1-5/16"-12 inch	Aluminum	6.3 HP	Accumulator and Cooler Division	152.4 mm	254 mm	Water Glycol
ULDC-007-A-000SB	Backordered	Backordered	$2,174.15/each	EA	12 VDC	65 psi External Hose Bypass	ULDC-007	None	330.2 mm	12 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	121 °C	20 lb	20.7 bar	1-5/16"-12 inch	Aluminum	7.2 kW	Accumulator and Cooler Division	6.8 inch	330.2 mm	Oil/Water Emulsion
ULDC-007-A-000SW	Backordered	Backordered	$1,715.80/each	EA	12 VDC	no bypass	ULDC-007	None	13 inch	12 VDC	1	0.27 HP	n/a	33.0 Gal/min	71 dBA	121 °C	20 lb	300 psi	1-5/16"-12 inch	Glass Fiber Reinforced Polypropylene	7.2 kW	Accumulator and Cooler Division	172.7 mm	13.3 inch	Oil/Water Emulsion
ULDC-007-A-100SW	Backordered	Backordered	$2,076.70/each	EA	12 VDC	no bypass	ULDC-007	100°F	330.2 mm	12 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	250 °F	20 lb	300 psi	1-5/16"-12 inch	Aluminum	9.7 HP	Accumulator and Cooler Division	6.8 inch	13.3 inch	Water Glycol
ULDC-007-A-120SB	Backordered	Backordered	$2,535.00/each	EA	12 VDC	65 psi External Hose Bypass	ULDC-007	120°F	13 inch	12 VDC	1	0.27 HP	n/a	33.0 Gal/min	71 dBA	250 °F	9 kg	300 psi	1-5/16"-12 inch	Electrostatically Powder-Coated Surface Treatment	7.2 kW	Accumulator and Cooler Division	172.7 mm	13.3 inch	Phosphate Ester
ULDC-007-A-120SW	Backordered	Backordered	$2,076.70/each	EA	12 VDC	no bypass	ULDC-007	120°F	13 inch	12 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	121 °C	9 kg	300 psi	1-5/16"-12 inch	Steel	7.2 kW	Accumulator and Cooler Division	6.8 inch	13.3 inch	Water Glycol
ULDC-007-A-140SB	Backordered	Backordered	$2,535.00/each	EA	12 VDC	65 psi External Hose Bypass	ULDC-007	140°F	13 inch	12 VDC	1	0.27 HP	n/a	33.0 Gal/min	71 dBA	250 °F	9 kg	20.7 bar	1-5/16"-12 inch	Aluminum	7.2 kW	Accumulator and Cooler Division	172.7 mm	330.2 mm	Water Glycol
ULDC-007-A-160SW	Backordered	Backordered	$2,076.70/each	EA	12 VDC	no bypass	ULDC-007	160°F	13 inch	12 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	250 °F	9 kg	20.7 bar	1-5/16"-12 inch	Aluminum	9.7 HP	Accumulator and Cooler Division	172.7 mm	330.2 mm	Oil/Water Emulsion
ULDC-007-B-000SB	Backordered	Backordered	$2,284.00/each	EA	24 VDC	65 psi External Hose Bypass	ULDC-007	None	330.2 mm	24 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	250 °F	20 lb	300 psi	1-5/16"-12 inch	Aluminum	9.7 HP	Accumulator and Cooler Division	6.8 inch	330.2 mm	Water Glycol
ULDC-007-B-000SW	Backordered	Backordered	$1,825.70/each	EA	24 VDC	no bypass	ULDC-007	None	13 inch	24 VDC	1	0.27 HP	n/a	33.0 Gal/min	71 dBA	121 °C	20 lb	300 psi	1-5/16"-12 inch	Aluminum	7.2 kW	Accumulator and Cooler Division	6.8 inch	13.3 inch	Water Glycol
ULDC-007-B-100SW	Backordered	Backordered	$2,076.70/each	EA	24 VDC	no bypass	ULDC-007	100°F	13 inch	24 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	121 °C	9 kg	300 psi	1-5/16"-12 inch	Steel	9.7 HP	Accumulator and Cooler Division	6.8 inch	13.3 inch	Mineral Oil
ULDC-007-B-120SW	Backordered	Backordered	$2,076.70/each	EA	24 VDC	no bypass	ULDC-007	120°F	13 inch	24 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	121 °C	20 lb	20.7 bar	1-5/16"-12 inch	Steel	7.2 kW	Accumulator and Cooler Division	6.8 inch	330.2 mm	Phosphate Ester
ULDC-007-B-160SB	Backordered	Backordered	$2,535.00/each	EA	24 VDC	65 psi External Hose Bypass	ULDC-007	160°F	13 inch	24 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	250 °F	9 kg	20.7 bar	1-5/16"-12 inch	Aluminum	9.7 HP	Accumulator and Cooler Division	6.8 inch	330.2 mm	Water Glycol
ULDC-007-B-160SW	Backordered	Backordered	$2,076.70/each	EA	24 VDC	no bypass	ULDC-007	160°F	13 inch	24 VDC	1	0.27 HP	n/a	124.9 L/min	71 dBA	250 °F	9 kg	20.7 bar	1-5/16"-12 inch	Aluminum	9.7 HP	Accumulator and Cooler Division	6.8 inch	330.2 mm	Oil/Water Emulsion
ULDC-011-A-000SA	Backordered	Backordered	$2,567.45/each	EA	12 VDC	20 psi External Hose Bypass	ULDC-011	None	15.7 inch	12 VDC	1	0.34 kW	n/a	39.6 Gal/min	75 dBA	250 °F	12 kg	300 psi	1-5/16"-12 inch	Aluminum	11.7 kW	Accumulator and Cooler Division	215.9 mm	381 mm	Mineral Oil
