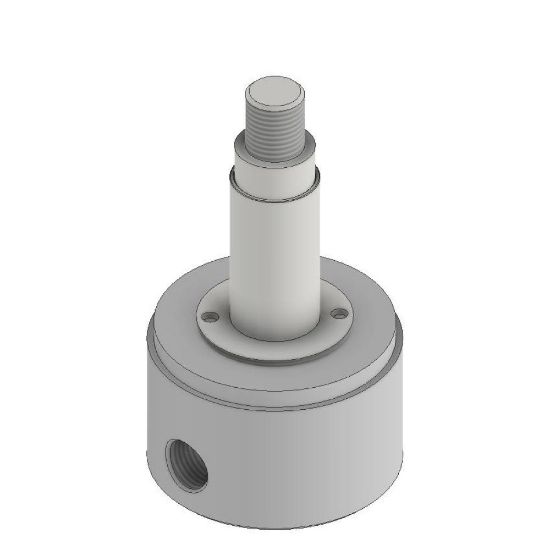

71216SN2JT00 - 6 Family - Direct Acting High Pressure Valves

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 71216SN2JT00

$220.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Stainless Steel	Media	General Purpose
Function	Normally Closed	Input Voltage	Pressure Vessel Only
Insulation Class	N/A	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	N/A
Minimum Pressure Differential	0.0	Seal Material	PTFE
Coil Type	Requires Coil from Chart 7 or Chart 8	Port Size	1/4
Installation	IOM 7206	Orifice Size	5/64
Actuation Type	Direct Acting	Power Consumption	Pressure Vessel Only
Main Flow Coefficient	0.090	Maximum Fluid Temperature	185.0
Preventive Maintenance Kit	N/A	Maximum Ambient Temperature	150 (10 watt), 77 (22 watt)
Maximum Pressure Differential	Requires Coil from Chart 7 or Chart 8	Division	Fluid Control Division
Media	General Purpose	Port Size	1/4 inch
Port Type	NPT	Input Voltage	Pressure Vessel Only
Actuation Type	Direct Acting	Power Consumption	Pressure Vessel Only
Body Material	Stainless Steel	Seal Material	PTFE
Specifications Met	N/A	Maximum Pressure Differential	Requires Coil from Chart 7 or Chart 8
Ingress Protection Rating	N/A	Function	Normally Closed
Coil Type	Requires Coil from Chart 7 or Chart 8	Maximum Fluid Temperature	185.0 °F
Minimum Pressure Differential	0.0 psi	Main Flow Coefficient	0.090 Cv
Installation	IOM 7206	Orifice Size	5/64 inch
Insulation Class	N/A	Valve Configuration	2 Way
Preventive Maintenance Kit	N/A	Maximum Ambient Temperature	150 (10 watt), 77 (22 watt) °F
