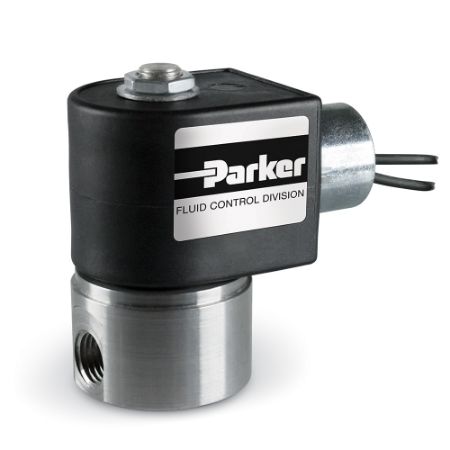

6 Family - Direct Acting High Pressure Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2-Way direct-acting high pressure valves are generally installed where high pressure requirements otherwise require the use of piston valves and/or valves with more robust seals such as PTFE and Ruby discs. These valves must be mounted upright; with solenoid coils vertical and upright.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Port Type	Body Material	Media	Function	Input Voltage	Insulation Class	Specifications Met	Valve Configuration	Ingress Protection Rating	Coil Type	Seal Material	Port Size	Installation	Orifice Size	Actuation Type	Power Consumption	Main Flow Coefficient	Maximum Fluid Temperature	Preventive Maintenance Kit	Maximum Ambient Temperature	Maximum Pressure Differential	Division	Media	Port Size	Port Type	Input Voltage	Actuation Type	Power Consumption	Body Material	Seal Material	Specifications Met	Maximum Pressure Differential	Ingress Protection Rating	Function	Coil Type	Maximum Fluid Temperature	Main Flow Coefficient	Installation	Orifice Size	Insulation Class	Valve Configuration	Preventive Maintenance Kit	Maximum Ambient Temperature
71216SN2BL00N0C111P3	Backordered	Backordered	$271.24/each	EA	NPT	Stainless Steel	General Purpose	Normally Closed	120/60, 110/50	Class F	N/A	2 Way	NEMA 4,4X	C111P3	NYLON	1/4	IOM 7206	1/32	Direct Acting	10.0	0.021	185.0	N/A	150.0	3000.0	Fluid Control Division	General Purpose	1/4 inch	NPT	120/60, 110/50	Direct Acting	10.0 W	Stainless Steel	NYLON	N/A	3000.0 psi	NEMA 4,4X	Normally Closed	C111P3	185.0 °F	0.021 Cv	IOM 7206	1/32 inch	Class F	2 Way	N/A	150.0 °F
71216SN2FU00N0C111C2	Backordered	Backordered	$271.94/each	EA	NPT	Stainless Steel	General Purpose	Normally Closed	24.0	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C111C2	RULON	1/4	IOM 7206	3/64	Direct Acting	10.0	0.037	185.0	N/A	150.0	1500.0	Fluid Control Division	General Purpose	1/4 inch	NPT	24.0 VDC	Direct Acting	10.0 W	Stainless Steel	RULON	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	1500.0 psi	NEMA 4,4X	Normally Closed	C111C2	185.0 °F	0.037 Cv	IOM 7206	3/64 inch	Class F	2 Way	N/A	150.0 °F
71216SN2FU00N0C111P3	Backordered	Backordered	$272.33/each	EA	NPT	Stainless Steel	General Purpose	Normally Closed	120/60, 110/50	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C111P3	RULON	1/4	IOM 7206	3/64	Direct Acting	10.0	0.037	185.0	N/A	150.0	1500.0	Fluid Control Division	General Purpose	1/4 inch	NPT	120/60, 110/50	Direct Acting	10.0 W	Stainless Steel	RULON	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	1500.0 psi	NEMA 4,4X	Normally Closed	C111P3	185.0 °F	0.037 Cv	IOM 7206	3/64 inch	Class F	2 Way	N/A	150.0 °F
71216SN2GL00N0C111P3	Backordered	Backordered	$271.41/each	EA	NPT	Stainless Steel	General Purpose	Normally Closed	120/60, 110/50	Class F	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	2 Way	NEMA 4,4X	C111P3	NYLON	1/4	IOM 7206	1/16	Direct Acting	10.0	0.070	185.0	N/A	150.0	1250.0	Fluid Control Division	General Purpose	1/4 inch	NPT	120/60, 110/50	Direct Acting	10.0 W	Stainless Steel	NYLON	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	1250.0 psi	NEMA 4,4X	Normally Closed	C111P3	185.0 °F	0.070 Cv	IOM 7206	1/16 inch	Class F	2 Way	N/A	150.0 °F
71216SN2JT00	Backordered	Backordered	$220.55/each	EA	NPT	Stainless Steel	General Purpose	Normally Closed	Pressure Vessel Only	N/A	N/A	2 Way	N/A	Requires Coil from Chart 7 or Chart 8	PTFE	1/4	IOM 7206	5/64	Direct Acting	Pressure Vessel Only	0.090	185.0	N/A	150 (10 watt), 77 (22 watt)	Requires Coil from Chart 7 or Chart 8	Fluid Control Division	General Purpose	1/4 inch	NPT	Pressure Vessel Only	Direct Acting	Pressure Vessel Only	Stainless Steel	PTFE	N/A	Requires Coil from Chart 7 or Chart 8	N/A	Normally Closed	Requires Coil from Chart 7 or Chart 8	185.0 °F	0.090 Cv	IOM 7206	5/64 inch	N/A	2 Way	N/A	150 (10 watt), 77 (22 watt) °F
