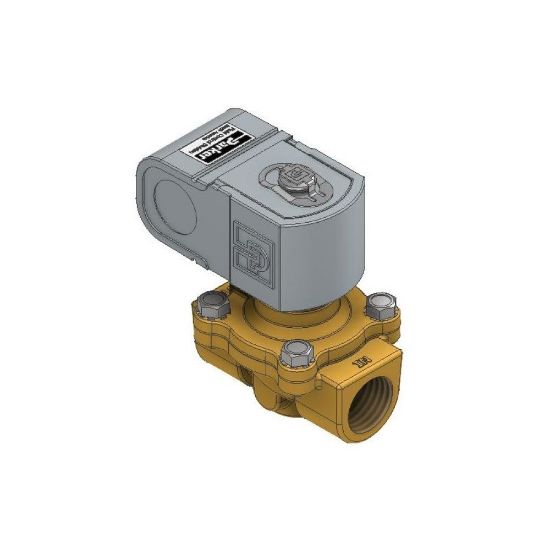

08F23C2140ACFSB05 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 08F23C2140ACFSB05

$274.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	Splice Box w/ 6" Leads
Port Size	1/2	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Body Material	BRASS	Input Voltage	120/60, 110/50
Seal Material	NBR	Actuation Type	Direct Lift
Insulation Class	Class F	Power Consumption	6.0
Specifications Met	UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	4.0	Ingress Protection Rating	NEMA 1
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	08F23C2140ACFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	150.0
Minimum Pressure Differential	0.0	Maximum Fluid Temperature	180.0 °F
Specifications Met	UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC	Preventive Maintenance Kit	08F23C2140ACFR
Port Type	NPT	Orifice Size	5/8 inch
Actuation Type	Direct Lift	Maximum Pressure Differential	150.0 psi
Ingress Protection Rating	NEMA 1	Body Material	Brass
Insulation Class	Class F	Division	Fluid Control Division
Maximum Ambient Temperature	130.0 °F	Coil Type	Splice Box w/ 6" Leads
Minimum Pressure Differential	0.0 psi	Seal Material	NBR
Installation	IOM 7321	Function	Normally Closed
Media	General Purpose	Main Flow Coefficient	4.0 Cv
Power Consumption	6.0 W	Valve Configuration	2 Way
Port Size	1/2 inch	Input Voltage	120/60, 110/50 VAC
