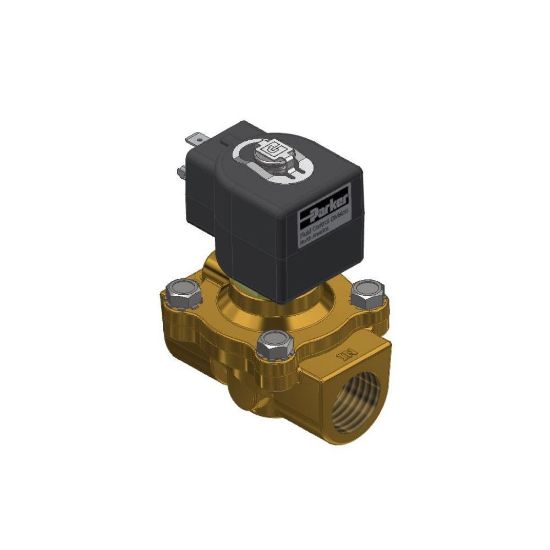

08F23C2240A3HPH80 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 08F23C2240A3HPH80

$351.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	DIN 43650A / ISO 4400
Port Size	1/2	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Body Material	BRASS	Input Voltage	24.0
Seal Material	FKM	Actuation Type	Direct Lift
Insulation Class	Class H	Power Consumption	11.5
Specifications Met	UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	4.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	150.0	Preventive Maintenance Kit	08F23C2240A3HR
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	40 (N/A Light Oil)
Minimum Pressure Differential	0.0	Insulation Class	Class H
Division	Fluid Control Division	Coil Type	DIN 43650A / ISO 4400
Maximum Ambient Temperature	77.0 °F	Minimum Pressure Differential	0.0 psi
Main Flow Coefficient	4.0 Cv	Seal Material	FKM
Installation	IOM 7321	Valve Configuration	2 Way
Media	General Purpose	Function	Normally Closed
Port Size	1/2 inch	Maximum Fluid Temperature	150.0 °F
Power Consumption	11.5 W	Input Voltage	24.0 VDC
Specifications Met	UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC	Preventive Maintenance Kit	08F23C2240A3HR
Port Type	NPT	Maximum Pressure Differential	40 (N/A Light Oil) psi
Orifice Size	5/8 inch	Body Material	Brass
Actuation Type	Direct Lift	Ingress Protection Rating	NEMA 4,4X
